| General |
HX-500S
|
| Frequency Ranges | 156 MHz - 163.275 MHz (Marine Band + WX Band) |
| Channel Steps | 25 kHz |
| Frequency Stability | ±10 ppm (-4° F to +140° F) |
| Emission Type | 16K0G3E |
| Antenna Impedance | 50 Ohms |
| Supply Voltage |
Nominal: 7.4V DC, Negative Ground (Battery Terminal) |
| Current Consumption |
170 mA (Receive) 50 mA (Standby) 1.45 A (5 W transmit) 1.0 A (2.5 W transmit) 0.6 A (1 W transmit) |
| Operating Temperature | -4° F to +140° F |
| Case Size (W x H x D) | 2.36 x 4.09 x 1.2 w/o knob & antenna |
| Weight (Approx) | 12.3 oz. with FNB-83, Antenna |
| Waterproof spec | IPX7 |
| Transmitter | |
| RF Power Output (@7.4 V) |
5, 2.5 or 1 W |
| Modulation Type | Variable Reactance |
| Maximum Deviation |
±5 kHz (Marine Band) ±2.5 kHz (FRS Band) |
| Spurious Emission | At least 65 dB below |
| Microphone Impedance | 2 k-Ohm |
| Receiver | |
| Circuit Type | Double-Conversion Superheterodyne |
| Intermediate Frequencies |
1st: 47.25 MHz 2nd: 450 kHz |
| Sensitivity | 0.2 μV for 12 dB SINAD |
| Adjacent Channel Selectivity | 65 dB Typical |
| Intermodulation | 65 dB Typical |
| Selectivity | 25 kHz (-60 dB) |
| AF Output |
700 mW @ 16 Ohm for 10 % THD (@7.4 V) |
| Standard Horizon reserves the right to
make changes and enhancements to products at our discretion. Current specifications are therefore subject to change without notice. |

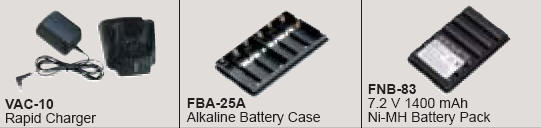

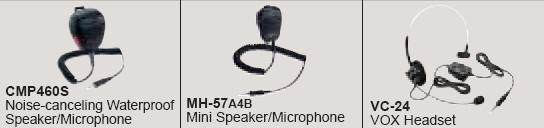

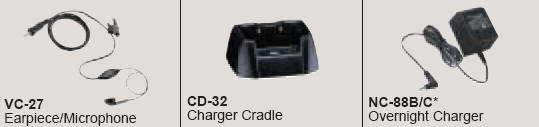

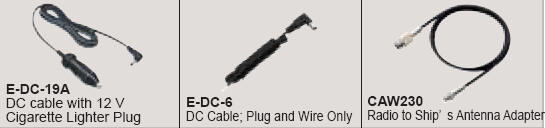

| OPTIONAL ACCESSORIES |
 |
 |
 |
 |
|
