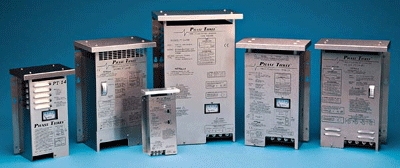

Phase
Three "Smart" battery charging technology is now available in a wide range
of power levels, allowing you to select the right size, features and
flexibility you require for virtually any application from small
recreational craft to large live-aboards, workboats and other commercial

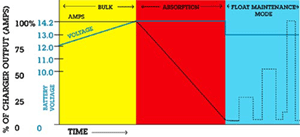

vessels. These chargers interact with batteries to put them through the
optimum three stage charge process which provides for fastest recovery and
ideal conditioning, maximizing battery performance and extending battery
life.
A selector switch
adjusts output voltage to adapt for gel-cell/flooded lead-acid/AGM battery
types. An optional temperature compensation sensor also adjusts output for
ideal voltage based on changes in the batteries' ambient temperature. All
models are housed in a rugged stainless steel case, and the internal
circuitry is polyurethane coated for maximum corrosion resistance
-
�Smart� circuitry
provides three stage charging�bulk, absorption, float.
-
Wide model range
covers battery system ratings from 14-950 amp-hours
-
Gel-Cell/Flooded
Lead-acid/AGM battery type switch selects optimum charge/float voltages.
-
Multiple isolated
output banks; ammeter indicates total output current*.
-
Optional sensor
adjusts output voltage based on battery temperature*. *except PT-7.
-
Current
limiting-prevents damage from overloading.
-
Charger status
clearly displayed with L.E.D. and/or audible indicators or optional
remote panel.
-
Use as a power
supply; can power loads without a battery in line.
-
Built to last�rugged
stainless steel case with drip shield and marinized internal circuitry.
-
Numerous Safety and
EMC Compliances
-
Full two year parts
and labor warranty
Optional Accessories
|
Remote Indicator Panel |
Temperature Compensation Sensor |
DCE |
|
LED's indicate
charger output stage. Button allows manual reinitialization of three
stage charge cycle.
Supplied with 25' cable and plug-in connector.
Panel dimensions: 3" H x 4.75" W |
- 5 mV per cell per
�C. Sensor supplied with 25' cable and plug-in connector |
DC Energy Monitor,
reads Volts, Amps, Amp-Hours |
|
