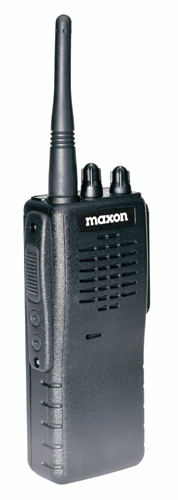

SP-300 Series
VHF / UHF Scanning Portables

SP-300 SeriesMaxon's SP-300 Series offers selectable per-channel power output settings, a variety of scan modes and a locking accessory connector; along with a choice of multi-channel models on VHF / UHF frequencies. Providing power, customized operation, durability and convenience; the SP-300's are the solution to increased productivity.

4 or 16 Channel models available
Choose the 4 channel SP-310 (VHF) or SP-320 (UHF); or the 16 channel
SP-330 (VHF) or SP-340 (UHF) radio to fit your communication needs.

Programmable RF output
Select 5 or 1 Watt per-channel settings to maintain clear conversations no matter the environment.

PC Programmable software options
Program multiple scan modes, scan channel delete, CTCSS / DCS signaling, busy channel lockout and more; customize the radio to fit your needs.

Locking accessory connector
A locking connector keeps your radio accessories securely attached during demanding use.

Multiple signaling options
Choose analog or digital encoders; also 2-tone decode, voice and speech inversion scramblers.

Battery save capability
By placing the radio into "sleep" mode, radio battery life is extended - you gain productive communication hours.

Durable frame and cabinet materials
Manufactured with a die-cast aluminum frame and polycarbonate cabinet.

Approved to MIL-STD810F specifications
Ensured to work under the most rigorous of conditions.

Accessories / Options

Battery: 1350 mAh NiMH Battery pack (ACC-200)
Antennas: VHF Antenna, 5-1/2", 150-162 MHz, stud-mount (ACC-101VLB); VHF Antenna, 5-1/2", 162-174 MHz, stud-mount (ACC-101VB); UHF Antenna, 3-1/2", 440-470 MHz, stud-mount (ACC-104UW); VHF Antenna, 6", stud-mount (CA-2506); UHF Antenna, 6" stud-mount (CA-5506)

Chargers: Vehicular dual slot / dual rate rapid charger (ACC-406); 6-Station universal gang charger (ACC-460); Charger cups for gang charger (ACC-463); Dual slot / dual rate desktop charger (QPA-1130); Single unit desktop charger (QPA-1135)

Audio: Ultra-lite headset with locking connector (ACC-615); Over-the-head noise-attenuating headset* (ACC-626); Behind-the-head noise-attenuating headset* (ACC-627); Ear hook speaker mic with P-T-T & low profile locking connector (ACC-712); Speaker microphone with low profile locking connector (ACC-713); Speaker microphone with locking connector (ACC-730); Speaker microphone with earphone jack & locking connector (ACC-731); Coil cord earphone, used with ACC-731 (QPA-1424); Ear speaker, used with ACC-713 (WTA-9F).

Carrying: Leather case with swivel (QPA-1491); Nylon case with belt clip (QPA-1495)

Signaling: Analog: DTMF / five-tone / two-tone ANI encoder (ANI-MA MAXON);

Digital: GESTAR ANI encoder (ANI-MG MAXON); Digital: MDC-1200 / MDC-600 ANI encoder (ANI-MM MAXON); 2-Tone sequential decoder (SA-201); Rolling Code voice scrambler (TVS-2 MAXON); DTMF / Five-tone (Selcall) / 2-tone decoder with ANI (UD-1B MAXON); Speech inversion scrambler (on 3676 Hz, VPU-11 MAXON); Speech inversion scrambler (VPU-15 MAXON)

Adaptor: 2-Pin to 12-pin accessory adaptor (ACC-501) * Requires ACC-501 adaptor for use with
SP-300 Series radios

Features / Functions

  • 4 or 16 Channel models available
  • Programmable 5 or 1 Watt per-channel RF power
  • Approved to MIL-STD810F Specifications
  • Programmable wide / narrow channel spacing
  • CTCSS / DCS Tone signaling
  • Multiple signaling options (see "Accessories / Options" )
  • 12-Pin locking accessory connector
  • Channel scan, priority channel scan, priority channel scan with look back and priority look back
  • Scan channel delete
  • Busy channel lock out
  • Time-out-timer
  • TX Inhibit
  • Battery save circuitry
  • Die-cast aluminum frame, polycarbonate cabinet
  • FCC Certified for use in U.S.A. and its possessions and Canada Approved for sale / use in Canada
