WISCO International (ICOM- IC-F520)

FLEXIBLE YET SIMPLE DESIGN FOR B&I USERS

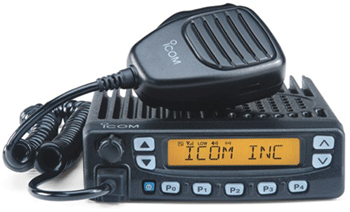

IC-F520

The mobile of choice for today's professional

The IC-F520/F620 series mobiles meet the demanding needs of today’s professionals. With 256 channel capacity and built-in flexible tone signaling, these mobiles meets the demanding needs of today's professionals. B&I users will appreciate the flexible, yet simple design of these MIL SPEC rugged mobiles from conventional to expanded trunking operation.

Flexible selective calling

CTCSS, DTCS, 2-tone and 5-tone encoder/decoder and DTMF encoder are built-in. These signaling are applicable to a wide variety of selective calling systems to call specific station(s) or control a repeater. The ANI function is available with 2-tone/5-tone and DTMF decoder*.
* Optional UT-108 is required.

256 memory channels

With 256 channels separated into 16 memory banks and identifiable by a 10-character alphanumeric LCD, you can quickly access pre-programmed contingency frequency plans—ideal for regionalwide, cross-municipality communications!

Face the speaker in the direction you need

The IC-F520/F620 series lets you rotate the chassis to face the speaker simply in the direction you need while the control head remains right side up.

Flash CPU advantage

The IC-F520/F620 series uses a flash CPU and high speed PLL. Flash ROM allows future system upgrade and future compatibility with other protocols. Fractional-N system provides faster lockup time, efficient for trunking use.

Trunking capability

Compatible with the SmarTrunkΙΙTM or the ® trunking system. Optional UT-117 for SmarTrunkΙΙTM or UT-110 for ® trunking is required.

Additional Features

Built-in audio compander
Independent AF volume knob
Optional voice scrambler, UT-109 or UT-110
Selectable channel spacing (12.5/15kHz/25/30kHz)
Stun and power-on password function
Backlit keypad
