Conventional, LTR® or Digital*
Just Try and Outgrow This Radio
*With UT-119H

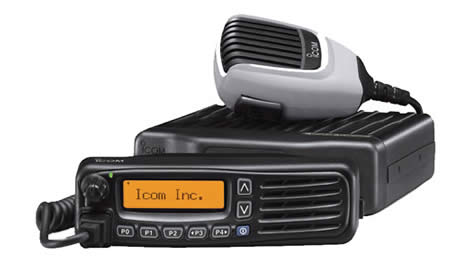

The IC-F5061/F6061 is ideal for public
safety, transportation and delivery service users. It offers advanced
multi-mode operations, improved scanning and flexible installation
suitable for mobile and base stations.
MDC 1200 Compatible
Advanced automatic number identification (ANI), selective call (Selcall)
and emergency call features are available with the built-in MDC
signaling. The PTT ID function sends your unit ID number when you push
(or release) the PTT button. The received ID number can be decoded to a
user name using the alias table. The selcall enables you to call
individual or group users as you desire. The emergency call feature
allows you to send and repeat an emergency message to dispatch until the
dispatch responds to it. In such a situation, the radio can transmit
anything the microphone hears and the dispatcher can monitor the
background sound. Radio check, status, message, radio stun, revive and
call log are also available.
6.25kHz Digital mode ready
 With
the optional UT-119H, the IC-F5061 series provides 6.25kHz digital
narrow mode communication that meets the FCC 6.25kHz emission mask
requirements for narrow banding, and increases efficiency of channel
allocation and use of spectrum. The IC-F5061 series provides 2 optional
slots: one for the UT-119H digital unit and one for another option
board.
Detachable front panel
With the optional remote
control kit, RMK-3 and separation cable, the front panel of the radio
can be detached from the main unit. It allows you flexible installation
even in limited installation space. Separation cable length is
selectable from 1.9m, 3.0m and 8.0m*.
* 6.2ft, 9.8ft and 26.2ft
respectively.
 Dot
matrix, multi-function LCD
With a high contrast dot matrix
display, upper and lower case characters can be easily distinguished.
You can change the display setting to show one line and 12 characters,
or two lines and 24 characters via programming. LCD backlighting is
standard.
Front mounted speaker
4 watts (typ.) front mounted speaker delivers clear and loud audio. The
built-in audio compander improves the signal to noise ratio.
IP54 dust-protection and splash
resistance (Controller only)
The rugged die-cast chassis and
polycarbonate front panel are resistant to shock and vibration. When
used with the optional separation kit, the remote control head has
dust-protection and splash resistant construction, equivalent to IP54.
Wide frequency range and large channel
capacity
The IC-F5061 series covers a wide frequency range in one version
(VHF 136–174 MHz, UHF 400 – 470MHz or 450–512 MHz). The 512 memory
channel capacity with 128 zones allows you to divide and store a variety
of flexible channel groupings.
Basic LTR®/Conventional mode operation
Group, selective, and phone calls are all available in LTR® mode. The
beep on receive function informs you with a beep sound when an
individual call is received
Multiple 2-Tone, 5-Tone signalings
The built-in 2-Tone and 5-Tone capabilities allows you to send a tone
code with your call and decode multiple tone codes on a channel. 40
pairs of CTCSS/ DTCS memory channels are available.
Voting scan
The voting scan detects the S-meter level of repeater stations and
automatically selects the strongest station or the first station to
exceed the preset S-meter level, useful for roaming between 2 or more
repeater sites. Primary and secondary channels are also programmable for
the priority scan.
Mode slave scan
In the normal mode scan, you can select a scanning list independent to
the channel setting. In the mode slave setting, the scanning list is
automatically selected according to the operating channel.
Built-in inversion-type voice
scrambler
The built-in inversion type voice scrambler provides secure
conversation. When a more secure system is required, the 32 code
non-rolling-type voice scrambler UT- 109R and 1020 code rolling type
UT-110R are available as an option.
D-sub accessory connector
The IC-F5061 series has a D-SUB 25 pin ACC connector for connecting
various external devices.
Other features
- Improved scanning functions
including Tx channel, talk back and nuisance delete
- 8 DTMF autodial memories and ANI
function with DTMF
- Heavy duty, dynamic microphone
HM-148
- Power on password
- Radio stun and kill functions
disable a lost or stolen unit over the air
- Busy repeater lockout function
- Surveillance function temporarily
turns off the LED backlight and beep sound
- Convenient key assign sticker is
supplied
- Microphone hanger action
programmable
- Ignition sensing line
- ±1ppm frequency stability
- Embedded ESN
- Flash CPU for future upgrade
- The IC-F3061/ F4061 series is the
handheld equivalent model
|
