General |
Frequency range
IC-F3061T/S
IC-F4061T/S |
136–175MHz
400-470MHz
450-520MHz |
| Number of
channels |
512
channels/128 zones |
| Channel
spacing |
12.5kHz/25kHz, 15kHz/30kHz, 6.25kHz (option) |
| PLL channel
step |
2.5kHz,
3.125kHz |
| Antenna
impedance |
50Ω |
| Usable
temperature range |
–30°C to
+60°C; –22°F to +140°F |
| Power
supply requirement |
7.2V DC |
Current
drain (at 7.2V DC)
Transmit
Receive |
|
VHF/UHF |
1.5A/1.8A (at
5W/5W) |
| stand-by
|
95mA
|
| rated output
|
600mA
|
|
Dimensions
(with BP-232)
(projections are not included) |
53 (W) ×136
(H) ×38.5 (D) mm;
23⁄32 (W) ×511⁄32
(H)×117⁄32 (D) in |
| Weight
(approx.) |
338g;
11.9oz (with BP-232N) |
|
Transmitter |
|
Output power |
5W (VHF), 5W (UHF) |
| Max.
frequency deviation |
±5kHz
(Wide) ±2.5kHz (Narrow) |
| Frequency
error |
±1.0 ppm |
| Spurious
emissions |
75dB typ. |
| Adjacent
channel power |
80dB typ.
(Wide), 70dB typ. (Narrow) |
| FM Hum and
Noise |
46dB typ.
(Wide)
40dB typ. (Narrow) |
| Audio
harmonic distortion |
3% typ. (AF
1kHz, 40% deviation) |
| Modulation
limiting |
60–100% of
max. deviation |
| External
microphone connector |
9-pin multi
connector/ 2.2kΩ |
|
Receiver |
Intermediate frequency
1st
2nd |
46.35MHz
450kHz |
| Sensitivity |
0.25μV typ.
(at 12dB SINAD) |
| Squelch
sensitivity |
0.25μV typ.
(at threshold) |
| Adjacent
channel selectivity |
75dB typ.
(Wide)
68dB typ. (Narrow) |
| Spurious
response |
70dB min. |
|
Intermodulation |
74dB typ. |
| Hum and
noise ratio |
46dB typ.
(Wide)
40dB typ. (Narrow) |
| Audio
output power |
500mW typ.
(at 5% distortion with an 8Ω load) |
| External
speaker connector |
9-pin multi
connector / 8Ω |
Measurements made in
accordance with EIA-152C/204D, TIA-603. All
stated specifications are subject to change without notice or
obligation.
Applicable U.S. Military
Specifications
Icom makes rugged products that
have been tested to and passed the following MIL-STD requirements
and strict environmental standards.
|
Standard |
MIL 810C |
MIL 810D |
MIL 810E |
MIL 810F |
|
Method |
Proc. |
Method |
Proc. |
Method |
Proc. |
Method |
Proc. |
| Low
Pressure |
500.1 |
I |
500.2 |
I, II |
500.3 |
I, II |
500.4 |
I, II |
| High
Temp. |
501.1 |
I |
501.2 |
I, II |
501.3 |
I ,II |
501.4 |
I, II |
| Low
Temp. |
502.1 |
I |
502.2 |
I, II |
502.3 |
I, II |
502.4-3 |
I, II |
| Temp.
Shock |
503.1 |
I |
503.2 |
I |
503.3 |
I |
503.4 |
I |
| Solar
Radiation |
505.1 |
I |
505.2 |
I |
505.3 |
I |
505.4 |
I |
| Rain |
506.1 |
II |
506.2 |
II |
506.3 |
II |
506.4 |
III |
|
Humidity |
507.1 |
I, II |
507.2 |
II, III |
507.3 |
II, III |
507.4 |
— |
| Salt
Fog |
509.1 |
I |
509.2 |
I |
509.3 |
I |
509.4 |
— |
| Dust |
510.1 |
I |
510.2 |
I |
510.3 |
I |
510.4 |
I |
|
Vibration |
514.2 |
VII, X |
514.3 |
I |
514.4 |
I |
514.4 |
I |
| Shock |
516.2 |
I, II, IV |
516.3 |
I, IV |
516.4 |
I, IV |
516.5 |
I, IV |

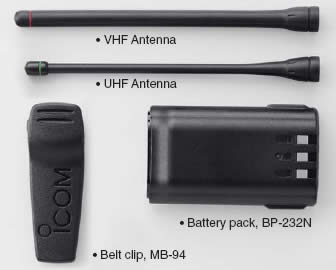

Supplied accessories*
- VHF Antenna .
- UHF Antenna
- Battery pack, BP-232N
- Belt clip, MB-94
*May differ according to version
