Analog, LTR® Conventional and
Digital* All in One
Basic LTR®/Conventional mixed
mode operation
The

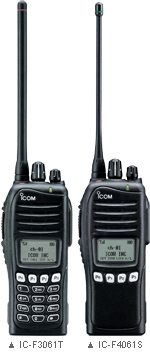

IC-F3061 series provides LTR®/conventional mixed mode operation.
Group, selective (DTMF), and phone call are available in LTR®
mode.
IP54/55 Dust-protection
and splash, water jet resistance
The IC-F3061 series meets IP54/55 requirements for dust-protection,
splash and water jet resistance. Its durable construction is backed up by
the aluminum diecast chassis and polycarbonate casing, allowing reliable
operation under harsh weather and environmental conditions.
Lithium-Ion battery pack
Supplied 2000mAh Li-Ion battery pack, BP-232, provides 14 hours*
of operating time. Icom’s rugged dual-rail guide securely locks the battery
to the radio. Optional battery case BP-240 provides a convenient back up and
great reassurance in an emergency.
* Typical operation Tx:Rx:Stand-by=5:5:90, power
save on
Most popular signalings built-in
The IC-F3061 series has built-in 2-Tone, 5-Tone, CTCSS and DTCS signaling
capabilities as standard for group communication or selective calling. 40
pairs of CTCSS/ DTCS memory channels are programmable
independent of the operating channels.
Also, the IC-F3061 series can decode
ten
2-Tone codes or eight 5-Tone codes on a channel. When a matched tone is
received, the following actions are programmable for each code.
- Beep sound
- Bell icon
- Auto TX
- Answer back call
- Stun/kill radio
- Scan
Wide frequency range and large channel capacity
The IC-F3061 series covers a wide frequency range in one version (VHF
136–174 MHz, UHF 400–470 MHz or 450–520 MHz). The 512 memory channel
capacity with 128 zones allows you to divide and store a variety of flexible
channel groupings. Memory channel selection can be made with a simple
rotation of the rotary channel knob. Wide and narrow channel bandwidth
(25/12.5kHz, 30/15kHz) is also programmable.
Full dot-matrix LCD
Using a large
full dot-matrix LCD (32 × 18 mm), the
IC-F3061 series shows upper and lower case characters clearly. The display
setting is selectable from 1 line, 12 characters or 2 lines 24 characters
via programming. The bottom row shows assigned functions to the [P0] to [P3]
buttons.
Enhanced audio
The IC-F3061 series employs a BTL amplifier that increases the audio
output and the built-in audio compander provides clear, low noise
communications.
Voting mode scanning
The Voting mode scanning detects the S-meter level of repeater stations
and automatically selects the strongest station, useful for roaming between
2 or more repeater sites. In addition, the IC-F3061 series has 10 scanning
modes including priority scan and double priority scan.
Built-in inversion-type voice scrambler
The built-in inversion type voice scrambler provides secure conversation
as standard. When a more secure system is required, the 32 code
non-rolling-type voice scrambler UT-109R and 1020 code rolling type UT-110R
are available as an option.
Other features
- 8 DTMF autodial memories
- 2 step reduced power setting
- Power on password
- Busy, repeater lockout functions
- Radio stun and kill functions disable a lost or stolen unit over the
air
- Surveillance function temporarily turns off the LED backlight and
beep sound
- Powerful 5W output both VHF and UHF and more...
- Flash CPU for future upgrade and more...
6.25kHz digital mode ready
A first in the LMR industry. With the optional
UT-119H, the IC-F3061 series provides 6.25kHz digital narrow mode
communication that meets the FCC 6.25kHz emission mask requirements for
narrow banding, and increases efficiency of channel allocation and use of
spectrum. The IC-F3061 series provides 2 optional slots: one optional slot
for the UT-119H digital unit and one for another option board.
