Description Type No
Cable Ordering Information

Standard Cable

 LDF7-50A

1 5/8" Standard Cable,
Standard Jacket



Fire Retardant Cables

1 5/8" Fire Retardant Jacket (CATVR)

 LDF7RN-50A

Low VSWR and Specialized Cables

1 5/8" Low VSWR, specify operating band.

 LDF7P-50A
(**)

** Insert suffix number from "Low VSWR

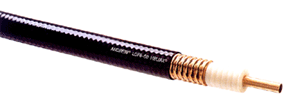

1 5/8" Foam Dielectric,
LDF Series - 50-ohm

LDF7-50A



Characteristics

Electrical



Mechanical



Impedance, ohms

 50 ± 1

Outer Conductor

 Copper.

Maximum Frequency, GHz

 2.5

Inner Conductor

 Copper Tube

Velocity, percent

 88

Diameter over Jacket, in (mm)

 1.98(50)

Peak Power Rating, kW

 315

Diameter Copper Outer Conductor, in (mm)

 1.825(46.3)

dc Resistance, ohms/1000 ft
   Inner
   Outer

 0.25 (0.83)
0.16 (0.52)

Diameter Inner Conductor, in (mm)

 0.681(17.3)

dc Breakdown, volts

 11000 Nominal Inside Transverse Dimensions, cm 4.05

Jacket Spark, volts RMS

 10000

Minimum Bending Radius, in (mm)

 20 (510)

Capacitance, pF/ft (m)

 23.1 (75.8)

Number of Bends, minimum (typical)

 15 (50)

Inductance, µH/ft (m)

 0.058 (0.190)

Bending Moment, lb-ft (N•m)

 40 (54.2)


Cable Weight, lb/ft (kg/m)

 0.82 (1.2)


Tensile Strength, lb (kg)

 800 (363)


Flat Plate Crush Strength, lb/in (kg/mm)

 120 (2.1)
Connectors
L7PNM-RPC L7PNF-RPC L7PDF-RPC L7PDM-RPC
L47R L47S L47F
Interface

Description

Type
Number

Inner Contact
Attach

Outer
Contact
Attach

Plating
Code

Max. Length
in (mm)

Max. Dia.
 in (mm)

N Male

OnePiece

L7PNM-RPC

 Captivated Self-Flare SS 4.4 (112) 2.47 (62.7)

N Female

OnePiece

L7PNF-RPC

Captivated

 Self-Flare SG 4.5 (114) 2.47 (62.7)

N Female

RingFlare

L7PNF-RC

Captivated

 Self-Flare SG 4.2 (107) 2.36 (59.9)
7/16 DIN Male OnePiece

L7PDM-RPC

 Captivated Self-Flare SS 4.2 (107) 2.46 (62.5)
7/16 DIN Female

OnePiece

L7PDF-RPC

 Captivated

Self-Flare

 SS 4.1 (104) 2.45 (62.2)
7/16 DIN Female RingFlare

L7PDF-RC

 Captivated

Self-Flare

 SS 3.4 (86) 2.36 (59.9)
7/8" EIA Flange - L47S Tap Flare Self-Flare BB 5.1 (130) 2.25 (57)
1-5/8" EIA Flange - L47R Tap Flare Self-Flare BB 5.1 (130) 3.5 (89)
F Flange Flange Male - L47F Tap Flare Self-Flare BB 5.9 (150) 2.25 (57)
F Flange Female - 201942 Tap Flare Self-Flare BB 5.5 (140) 2.25 (57)
Splice -

L47Z

Tap Flare

 Self-Flare BB 5.1 (130) 2.9 (74)

Accessories
Description Type No.

Standard Hangers Kit of 10. Recommended maximum spacing is 3-ft (1 m).

 42396A-2

Hardware Kit of 10. 3/8" bolts, lockwashers, nuts
3/4" (19mm) long
1" (25mm) long


31769-5
31769-1

Snap-In Hangers Kit of 10. For prepunched 3/4" (19mm) holes on tower member or adapters, Recommended maximum spacing is 3-ft.

 206706A-4

Click-On Hangers Kit of 10. Recommended maximum spacing is 3-ft.

 L7CLICK

Kwik-Clamps Kit of 10.



Support/Hoisting Grip. Use at 200-ft (60m) intervals.



Grip with one clamp
Support clamp kit of 10

L7SGRIP
L7SGRIP-71K

Standard Hoisting Grip

24312

Grounding and Surge Protection
Description Type No.
SureGround Grounding Kit with standard weatherproofing
Factory attached one-hole lug, 600 mm (24") lead
Factory attached two-hole lug, 600 mm  (24") lead
Field attached one-hole lug, 1500 mm (59") lead 		SGL7-06B1
SGL7-06B2
SGL7-15B4
SureGround Plus Grounding Kit with weatherproofing boot
Factory attached one-hole lug, 600 mm (24") lead
Factory attached two-hole lug, 600 mm  (24") lead
Field attached one-hole lug, 1500 mm (59") lead 		SGPL7-06B1
SGPL7-06B2
SGPL7-15B4
Arrestor Plus Integrated T-Series Arrestors
Bulkhead N Female
Bulkhead 7-16 DIN Female
APTL7-BNF-(*)
APTL7-BDF-(*)
WeatherShield™ Connector Protection Housing
LDF5 To LDF4
LDF7 To FSJ4		 WS-L7L4
WS-L7F4

Cold Shrink Weatherproofing Kit
1-5/8"" Coax to 1-5/8" Coax N Connectors
1-5/8" Coax to 1/4" Coax
1-5/8" Coax to 3/8" or 1/2" Coax
1 5/8" to APTL7 Arrestors

 241474-6
241475-11
241475-5A
241474-6
Connector/Splice Weatherproofing Kit 221213

Entry Systems

 4" Boots 5" Boots

Standard Cable Entry Boots
One Hole:

 204679A-4 48939A-2

Tools
1 5/8" Connector Torque Wrench
DIN Connector Coupling Torque Wrench
N Connector Coupling Torque Wrench
244374
244377
244379
