WISCO INTERNATIONAL (Andrew- HJ9-50)

Description
Type No.

Cable Ordering Information

Standard Cables

5" Standard Cable, Standard Jacket HJ9-50B

Low VSWR and Specialized Cables

Broadcast, Low VSWR
    54-216 MHz, 1.05 VSWR, max. over
    broadcast channel
    470-740 MHz, 1.08 VSWR, max. over
    broadcast channel
    740-856 MHz, 1.10 VSWR, max. over
    broadcast channel *

42142*

*For broadcast applications, specify channel and frequency

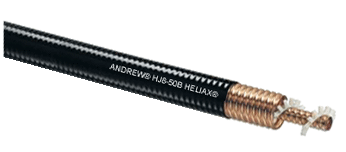

5" Air Dielectric
HJ Series -50 Ohm

HJ9-50

Characteristics

Electrical		Mechanical
Impedance, ohms	50 ± 0.5	Outer Conductor	Copper.
Maximum Frequency, GHz	0.96	Inner Conductor	Copper
Velocity, percent	93.1	Diameter over Jacket, in (mm)	5.20 (133)
Peak Power Rating, kW	1890	Diameter Copper Outer Conductor, in (mm)	5.00 (127)
dc Resistance, ohms/1000 ft (1000 m) Inner Outer	0.1 (0.3) 0.04 (0.13)	Diameter Inner Conductor, in (mm)	2.02 (51.3)
dc Breakdown, volts	27500	Nominal Inside Transverse Dimensions, cm	11.3
Jacket Spark, volts RMS	12000	Minimum Bending Radius, in (mm)	50 (1270)
Capacitance, pF/ft (m)	21.7 (71.2)	Number of Bends, minimum (typical)	15 (30)
Inductance, µH/ft (m)	0.055 (0.18)	Bending Moment, lb-ft (N•m)	200 (271)
		Cable Weight, lb/ft (kg/m)	3.3 (4.9)
		Tensile Strength, lb (kg)	1000 (454)
		Flat Plate Crush Strength, lb/in (kg/mm)	275 (4.9)

Connectors

H9FP-602

Interface	Description	Type Number	Inner Contact Attachment	Outer Contact Attachment	Plating Code	Max. Length in (mm)	Max. Dia. in (mm)
6 1/8" EIA Flange	Gas Pass Include Inner connector	H9MP-602	Tab Flare	Tab Flare	BB	12.3 (313)	8.13 (207)
6 1/8" EIA Flange	Gas Block Include Inner connector**	H9MB-602	Tab Flare	Tab Flare	BB	12.3 (313)	8.13 (207)
6 1/8" EIA Flange	Gas Pass no inner connector	H9FP-602	Tab Flare	Tab Flare	BB	9.5 (241)	8.13 (207)
6 1/8" EIA Flange	Gas Block no inner connector	H9FB-602	Tab Flare	Tab Flare	BB	9.5 (241)	8.13 (207)
4 1/2" IEC Flange	Gas Pass Include Inner connector	H9MP-M408	Tab Flare	Tab Flare	BB	10.7 (272)	6.6 (168)
4 1/2" IEC Flange	Gas Block Include Inner connector**	H9MB-M408	Tab Flare	Tab Flare	BB	10.7 (272)	6.6 (168)
4 1/2" IEC Flange	Gas Pass no inner connector	H9FP-M408	Tab Flare	Tab Flare	BB	8.3 (211)	6.6 (168)
4 1/2" IEC Flange	Gas Block no inner connector	H9FB-M408	Tab Flare	Tab Flare	BB	8.3 (211)	6.6 (168)
Splice	-	79AZ	Tab Flare	Tab Flare	BB	6.2 (157)	7.6 (193)

Accessories

Description	Type No.
Standard Hangers Kit of 10. Standard tower configuration spacing is 3-4 feet (1-1.2m).	33598-5
Hardware Kit of 10. 1/2" x 1 1/4" bolts, lock washers, nuts	31769-4
Standard Hoisting Grip	31031-1

Grounding and Surge Protection

Description	Type No.
Grounding Kit with standard weatherproofing Factory attached one-hole lug, 600 mm (24") lead Field attached screw-on lug, 915 mm (36") lead	204989-7 204989-37
Weatherproofing
Connector/Splice Weatherproofing Kit	221213
