WISCO INTERNATIONAL (Andrew- HJ12-50)

Description Type No.

Cable Ordering Information

Standard and Fire Retardant Cable
Maximum VSWR 1.20 (824-960 and 1850-1990 MHz)

2-1/4" Standard Cable, and Jacket
2-1/4" Fire Retardant Jacket (CATVR) HJ12-50
HJ12RN-50

Low VSWR and Specialized Cables

2- 1/4" Low VSWR, specify operating band
Cable for Cellular, standard jacket
824-960 MHz, 1.10 VSWR, max
Broadcast, Low VSWR
54-216 MHz, 1.05 VSWR, max.
over broadcast channel
470-740 MHz, 1.08 VSWR, max.
over broadcast channel
740-856 MHz, 1.10 VSWR, max.
over broadcast channel
HJ12P-50-(**)

207760-3

207761*

*For broadcast applications, specify channel and frequency

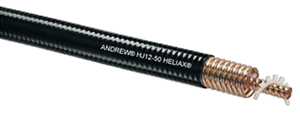

2 1/4" Air Dielectric
HJ Series -50 Ohm

HJ12-50

Electrical		Mechanical
Impedance, ohms	50 ± 0.5	Outer Conductor	Copper.
Maximum Frequency, GHz	2.3	Inner Conductor	Copper
Velocity, percent	93.1	Diameter over Jacket, in (mm)	2.38 (60.4)
Peak Power Rating, kW	425	Diameter Copper Outer Conductor, in (mm)	2.23 (56.6)
dc Resistance, ohms/1000 ft (1000 m) Inner Outer	0.17 (0.56) 0.075 (0.25)	Diameter Inner Conductor, in (mm)	0.890 (22.6)
dc Breakdown, volts	13000	Nominal Inside Transverse Dimensions, cm	4.96
Jacket Spark, volts RMS	10000	Minimum Bending Radius, in (mm)	22 (560)
Capacitance, pF/ft (m)	21.8 (71.5)	Number of Bends, minimum (typical)	15 (50)
Inductance, µH/ft (m)	0.055 (0.180)	Bending Moment, lb-ft (N•m)	55 (75)
		Cable Weight, lb/ft (kg/m)	1.16 (1.73)
		Tensile Strength, lb (kg)	980 (445)
		Flat Plate Crush Strength, lb/in (kg/mm)	145 (2.6)

Interface	Description	Type Number	Inner Contact Attachment	Outer Contact Attachment	Plating Code	Max. Length in (mm)	Max. Dia. in (mm)
N Female	-	H12PNF	Tab Flare	Tab Flare	SG	4.4 (112)	2.8 (71)
7-16 DIN Male	-	H12PDM	Tab Flare	Tab Flare	SS	4.5 (114)	3.1 (79)
3-1/8 EIA Flange	Gas Pass, Female	82RF	Tab Flare	Tab Flare	BB	6.9 (175)	5.2
3-1/8 EIA Flange	Gas Barrier, Female	82GF	Tab Flare	Tab Flare	BB	6.9 (175)	5.2
1 5/8" EIA Flange	Gas Pass, Male	82R	Tab Flare	Tab Flare	BB	4.8 (122)	3.5 (89)
7/8" EIA Flange	Gas Pass, Male	82S	Tab Flare	Tab Flare	BB	5.7 (145)	2.8 (71)
Splice	-	82Z	Tab Flare	Tab Flare	BB	5.9 (150)	3.4 (86)

Description	Type No.
Standard Hangers Kit of 10. Standard tower configuration spacing is 3-4ft (1-1.2m).	42396A-4
Hardware Kit of 10. 3/8" bolts, lockwashers, nuts 3/4" (19 mm) long 1" (25 mm) long	31769-5 31769-1
Snap-In Hangers Kit of 10. For pre-punched 3/4" (19") holes on tower member or adapters. Standard tower configuration spacing is 3-4 feet. (1-1.2m).	206706-5
Standard Hoisting Grip	31535

Description	Type No.
SureGround Grounding Kit with standard weatherproofing Factory attached one-hole lug, 600" mm (24") lead Factory attached two-hole lug, 600 mm (24") lead Field attached screw-on lug, 915" mm (36") lead	SGL12-06B1 SGL12-06B2 SGL12-15B4
Weatherproofing
Connector/Splice Weatherproofing Kit	221213
Entry Systems
Standard Cable Entry Boots	4" Boots	5" Boots
One-Hole:	204679A-8	48939A-9
