WISCO International (Vertex

512 Channel 5 Watt UHF Public Safety Portable Radios

450 MHz to 490 MHz (20 MHz bandwidth)

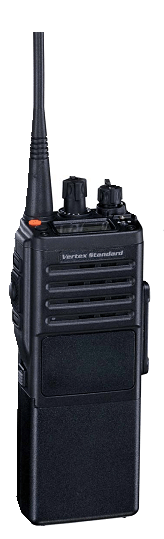

Metal Case. Designed by and for Public Safety, the VX-537 portable combines the proven ruggedness of the VX-510 and VX-520 portables with the sought after feature rich VX-800 and VX-900 portables. With 512-channel capacity, you will not have a problem storing all your frequencies and those of your neighboring cities and counties. The slanted 8-character display gives wider viewing angel and it is recessed to add protection against everyday, heavy-duty use.

The VX-530 comes ready for a leather case. No clip is included. The optional Clip-4 is available if you want to use a belt clip

Features

512 channel capacity
8-Character alphanumeric display (with one-touch invert.)
450 - 490 MHz
Full 5 Watt RF power output
700 mW audio output (40% increase over 500 mW)
10 hours battery life W/O power saver
CTCSS/DCS mixed on same channel
4 programmable softkeys
Top mounted 3-position toggle switch
Squelch settings per channel
Built-in emergency functions
Follow-me scan
Built-in noise canceling mic
Data protected password

Antennas
ATU-5D	450-470 MHZ / RED / 6.5" / HX292UT/310/500/510
ATU-5DS	450-470 MHZ / BLACK / 3" / HX292UT/310/500/510
CN-7	BNC Connector for VX-537
Batteries
FBA-19	Alkaline Battery Case (Requires 6 AA Cells)
FNB-29A	7.2 V, 1700 mAh Ni-Cd Battery
FNB-29AIS	7.2 V, 1700 mAh Ni-Cd Battery, Intrinsically Safe Version
Cases
LCC-530S	LCC-530S
LCS-2	Swivel Attachment for Leather Case
SBC-1	SBC-1
Charger
VAC-520	Charger Cup only, use with VCM-1
VAC-520B	120 VAC 1-Hour Rapid Desktop Charger
VAC-520C	240 VAC 1-Hour Rapid Desktop Charger
VAC-6520B	120 VAC 6 Unit Multi Charger
VAC-6520C	240 VAC 6 Unit Multi Charger
VCM-1	Vehicular DC Charger Mounting Adaptor. Requires a charging base: VAC-400, VAC-800, etc.)
Programming and Installation
CT-105	FIF-10 to VX-530/600/800/900 Cable
CT-70	Radio Programming Cable (Requires VX VPL-1 Cable)
CT-72	Cloning Cable (Set-to-Set Clone)
FIF-10A	FIF-10A USB Interface for PC programming. Check specific models for additional cable pigtails. Pigtails not included.
PROG/ADD	Factory Radio Programming (Each additional channel after 1st)
PROGRAMMING	Factory Radio Programming (single channel only)
VX VPL-1	Programming cable from PC. Check specific models for additional cable pigtails.
Signaling
F2D-8	Two-Tone Decoder. (requires FIF-7 if used on the VX-4000 / VX-5500 / VX-6000)
F5D-14	Five-Tone Enc/Dec Unit. (requires FIF-7 if used on the VX-4000 / VX-5500 / VX-6000)
FVP-25	Encryption Unit (Band Inversion Type) and DTMF Paging.(requires FIF-7 if installed into the VX-4000 / VX-5500 / VX-6000)
VMDE-200	MDC1200 Encoder/Decoder module
VME-100	The VME-100 is a plug-in ANI encoder capable of encoding MDC1200, GE Star or DTMF ANI per channel.
Speaker Microphones
MH-50C7A	MH-50C7A
