ruggedness, and versatility: these are the essential elements in a
successful communications system.

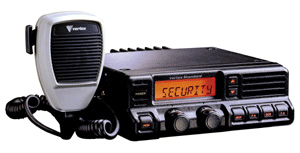

Vertex Standard VX-4000 provides the features, performance, and toughness
to get your message through under the most demanding public safety
operating conditions. It�s a perfect blend of rugged design, flexible
signaling options, superb ergonomics, and expandability, making the
VX-4000 series an outstanding choice for your future communications needs.
250 CHANNEL CAPACITY
POWER OUTPUT: 70 W (LOW BAND), 50 W (VHF), 40 W (UHF)
MIL- STD 810 C/D/E
12.5 / 25 kHz BANDWIDTH PROGRAMMABLE PER CHANNEL
2.5 kHz STEP FOR VHF/UHF
LARGE 8-DIGIT ALPHANUMERIC DISPLAY
7 PROGRAMMABLE BACKLIT KEYS
VOTING (RX SIGNAL STRENGTH) SCAN
DUAL BAND CAPABILITY
ONE RF DECK TO MULTI HEAD CAPABILITIES
DTMF SIGNALING & DIALING FEATURES
USER SELECTABLE TONES / CODES
CTCSS / DCS ENCODE + DECODE
ENCRYPTION/ROLLING CODE ENCRYPTION
RADIO TO RADIO CLONE FEATURE
BCLO, BTLO, AND TOT FUNCTIONS
BUILT IN 25 PIN (DB-25) ACCESSORY CONNECTOR
HEAVY-DUTY PUBLIC SAFETY
Coverage beyond typical frequency limits allows programming in
"guard band" channel allocations, and ensures compatibility for
programming in a wide variety of locations.
POWER OUTPUT: 70
W (LOW BAND), 50 W (VHF), 40 W (UHF)
Providing a solid 50 Watts of VHF power output (Low Band: 70
Watts; UHF: 40 Watts), the VX-4000's construction includes a massive,
die-cast outer case which doubles as the heatsink. The Automatic Power
Control (APC) circuit ensures stable power output over a very wide range
of ambient temperatures.
BANDWIDTH PROGRAMMABLE PER CHANNEL
The VX-4000 may be programmed with wide or Narrow operating
bandwidths, channel by channel, to conform to your local channel
environment. Ideal for multi-jurisdiction operations.
2.5 kHz STEP FOR
Ensuring full compatibility with all channel loading
requirements, the VX-4000's synthesizer provides 2.5 kHz resolution.
Channel programming therefore is straightforward in all configuration
EASY USER INTERFACE
7 PROGRAMMABLE BACKLIT
The front panel keys may be
programmed by the dealer for a variety of operating functions, allowing
customization of the front panel functions to your unique requirements.
The keys are illuminated from behind, as well, for easy viewing at night.
LOUD 5W/10W AUDIO OUTPUT
The VX-4000's high-powered audio (5
Watts standard, 10 Watts optional) is coupled to a large, front-facing
speaker, producing high-quality, crisp audio that will punch through even
in the noisy environments experienced by public safety officers.
(SQC) Feature (Patent Pending)
The VX-4000 can be programmed to include the Status Quick Check
(SQC) feature, which allows the user to check the configuration of all
controls, keys, and knobs on the radio. This enables the operator to avoid
missing important communications in the event that a control or switch is
set to the wrong position.
RADIO TO RADIO CLONE FEATURE
For quick programming of
VX-4000 radios for an emergency task force, the Clone feature allows
copying of all channel and other configuration data from one VX-4000 to
another, using the optional CT-72 Cloning Cable
The VX-4000 may be programmed to transmit an Emergency DTMF ANI
burst, with or without a live microphone engaged, to alert the dispatcher
to an emergency situation requiring assistance to the user.
The FVP-25 Encryption Unit provides security for your important
public safety and private security communications, and it also includes a
DTMF Paging function for selective calling.
MICROPHONE (Patent Pending)
In an emergency situation, the VX-4000 can transmit using an
internal microphone should the regular microphone become damaged or
CONSTRUCTION ALUMINUM CHASSIS/ENCLOSURE
The one-piece die-cast enclosure for the VX-4000 doubles as its
chassis, yielding extreme strength for resistance against shock and
vibration. This uniquely rugged construction ensures that specifications
and functionality will be maintained for many years, despite the shock,
vibration, and other abuse typically experienced by radios in public
The ABS front panel is sealed by a
robust O-ring, and all switches are covered by U-shaped silicone rubber
gaskets to protect the internal circuitry from dust, humidity, salt fog,
and driving rain.
The multi-pin microphone connector on the side of the VX-4000,
sealed for protection against weather, provides a convenient connection
point for the available microphones. Its gold-plated contacts ensure many
years of reliable service.
