| Electrical
Specifications |
| Model
Number |
P40901RCLTM |
| Tx Frequency |
MHz |
851-869 |
| Rx Frequency |
MHz |
806-824 |
| Tx Insertion
Loss (max) |
dB |
1 |
| Rx Insertion Loss (max) |
dB |
0.9 |
| TxN-to Rx Noise
Suppression (min) |
dB |
80 |
| Rx-to-TxC Carrier Isolation (min) |
dB |
95 |
| Return Loss
(min) |
dB |
14 |
| Impedance (nominal) |
Ohms |
50 |
| Input
Power(max) |
Watts |
400 |
| Terminations |
|
N-female |
| Temperature
Range |
Deg C |
0 to +50 |
|
|
| Mechanical Specifications |
| Model
Number |
P40901R1CLT |
Height(m)
-1

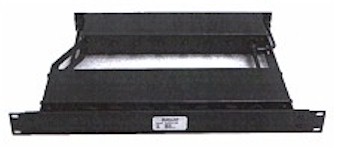

(shown) -2 |
in (mm)
in (mm) |
3.5
1.75 |
(88.9)
(44.5) |
| Width |
in (mm) |
19 |
(482.6) |
Depth(m)
-1
(shown) -2 |
in (mm)
in (mm) |
6
15 |
(152.4) |
| Weight |
lbs(kg) |
15 |
(381.0) |
| Mounting |
|
19" Rack |
(6.8) |
|
