Base Station Duplexers
Combline Band Pass Duplexer Cellular B-Band, (835-894 MHz >70dB<1.0 dB Insertion Loss)

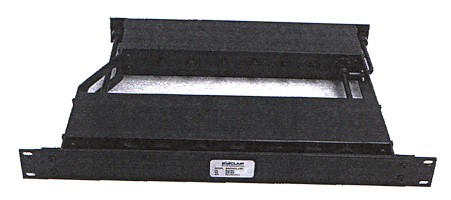

P40701CL-CB

P40701CL-CB

Electrical Specifications

Model Number

P40701CL-CB
Tx Frequency Range

MHz

880-894
Rx Frequency Range

MHz

835-849
Bandwidth

MHz

14
Insertion Loss

dB

<1.0 (0.8 typ.)
Average Power Input (max)

MHz

500
Isolation Tx <-> Rx

dB

>70
VSWR (max)

1.5:1
Impedance W

50
Termination

N-female
Temperature Range

Deg C

0 to +50

Mechanical Specifications

Model Number

P40701CL-CB
Height

In (mm)

1.75 (44.5)
Width

In (mm)

19 (482.6)
Depth

In (mm)

11 (279.4)
Weight

Lbs (kg)

15 (6.8)
Color/Finish

Shadow Bronze
Courier Shippable

Yes
