DC-DC Converters Standard Series

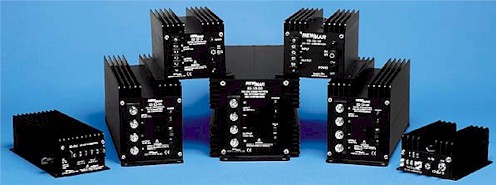

Convert 20-50 VDC to 12 or 24 VDC negative ground output for powering communication/ navigation equipment, on negative ground systems. (see Isolated series for positive ground applications.) Ideal for powering voice, data and navigation transceivers in mobile and marine applications.
  • Excellent Regulation: Output voltage maintained within 1% under all line and load conditions within rating.
  • Heat generated by semi-conductors is extracted and dissipated by large heat sink fins that maximize air contact for cool operation and long life of components.
  • Polyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum case with heavy duty shock mounts assure survival in hostile environments.
  • Numerous converter and load protection circuits: Current limiting*; automatic thermal shutdown; short circuit proof*; reverse polarity and overvoltage protection*. * Except 3 Amp. Models.

All models now CE certified for sale/use within the European Union (EU).
Performance Specifications

Output: 13.6 VDC (internally adjustable 12.6-14.5) or 24.5 VDC (or specify)

Ripple: 150 mV P-P maximum

Regulation: 1% Line/Load

Duty Cycle Ratings*: Intermittent - 20 minutes max on time, 20% duty. Current limit set at approx. 105% of intermittent rating Continuous - 24 hours, 100% duty

Idle Current: Less than 100 mA (including power "ON" light )

Operating Temp: 0-50� C, Derate Linearly From100% @ 40� C To 50% @ 50� C Thermal shutdown @ 70� C Case Temperature

Switching Frequency: 40 Khz (except 32-12-3 - Linear, Non-Switching)

Efficiency: 85% - Typical. (except 32-12-3 - 50% @ 24VDC Input)

Isolation - Output/Chassis; Input/chassis: 250 VDC

Certification: Carries the CE mark

Options

  • 24 VDC output (see specs)
  • Operation as battery charger or parallel redundant operation (except Model: 32-12-3) - derate to continuous duty rating (contact factory)
  • Extreme vibration mounting kit.

Specifications

Standard Series
Voltage
Output Amps
Case - Inches
Case - Centimeters
Weight
Model
Input
Output
Intermittent
Continuous
H
W
D
H
W
D
(Lbs)
(Kg.)
32-12-3
20-40
13.6
3
2
2.7
4.5
6
6.9
11.4
15.2
2
0.9
32-24-3
32-40
24.5
3
2
2.7
4.5
6
6.9
11.4
15.2
2
0.9
32-12-6
20-50
13.6
6
6
2.8
4.2
10.4
7.1
10.7
26.4
2.5
0.9
32-24-6
32-50
24.5
6
6
2.8
4.2
10.4
7.1
10.7
26.4
2.5
0.9
32-12-10
20-50
13.6
10
10
4.5
5.9
11
11.4
15
27.9
4
1.8
32-24-10
32-50
24.5
10
10
4.5
5.9
11
11.4
15
27.9
4
1.8
32-12-15
20-50
13.6
15
15
4.5
5.9
11
11.4
15
27.9
5
2.3
32-24-15
32-50
24.5
15
15
4.5
5.9
11
11.4
15
27.9
5
2.3
32-12-25
20-50
13.6
25
20
6
4.7
14
15.2
11.9
35.6
7.5
3.4
32-24-25
32-50
24.5
25
20
6
4.7
14
15.2
11.9
35.6
7.5
3.4
32-12-35
20-50
13.6
35
30
6
4.7
16
15.2
11.9
40.6
12
5.5
32-24-35
32-50
24.5
35
30
6
4.7
16
15.2
11.9
40.6
12
5.5
32-12-50
20-50
13.6
50
40
6.2
6.8
18.1
15.7
17.3
46
16
7.3
32-24-50
32-50
24.5
50
40
6.2
6.8
18.1
15.7
17.3
46
16
7.3
Extreme Vibration Mounting Kit

The Extreme Vibration Mounting Kit is available to protect NEWMAR power converters from the extreme stresses of shock and vibration when mounted on high-vibration vehicles.

The kit replaces the standard vibration kit provided with the unit and fits into the unit's mounting flange to act as a "super shock absorber" for electronics in high-vibe applications. It is available to fit all NEWMAR units from 2 to 70 lbs. Specify KIT-L for units which weigh 2-15 lbs. and Kit-H for units which weigh 16-70 lbs.
