YA3406WN - YA3490WN
406 - 512 MHz

Radiall/Larsen Yagi directional antennas are designed with strengthened aluminum alloys to assure long life and best performance for the most demanding applications. Units are completely weatherized for continuous operation in the most extreme weather conditions. Solid aluminum elements provide superior signal radiation and broad bandwidth capabilities. Convenient �U� bolt mounting makes installation easy. All Radiall/Larsen Yagis come with the Radiall/Larsen Two Year No-Nonsense warranty. Radiall/Larsen Yagis are available in the following configurations:

Welded Yagis:
Superior performance from fully welded construction. The ideal antenna for the most extreme environments.

YA3 �W�
� Frequencies from 406-470 MHz
� 5 elements
� 11 dBi gain

MODEL FREQUENCY CONNECTOR
YA3406WN 406-430 MHz N Female
YA3406WPL 406-430 MHz UHF Female
YA3450WN 450-470 MHz N Female
YA3450WPL 450-470 MHz UHF Female
YA3470WN 470-490 MHz N Female
YA3490WN 490-512 MHz N Female
SPECIFICATIONS
GAIN 9 dBd / 11 dBi
TYPE Five element welded
VSWR 1.5:1 maximum
POWER RATING 300 watts
MAX LENGTH 42.25"-406 MHz
36.25"-450 MHz
35.25"-470 MHz
34.25"-490 MHz
VERTICAL BEAMWIDTH 53�
WIND LOAD 100 mph

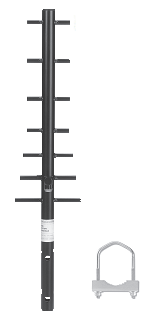

Fully welded seven element UHF
Yagi. High gain, 1395 - 1450 MHz. Includes mounting hardware.

MODEL FREQUENCY CONNECTOR
YA51400W 1395-1450 MHz N Female


SPECIFICATIONS
GAIN 10 dBi
TYPE Seven element welded
VSWR 2:1 maximum
POWER RATING 300 watts
MAX LENGTH 23.5"
VERTICAL BEAMWIDTH 54�
WIND LOAD 100 mph
