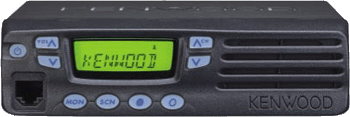

|ALPHANUMERIC LCD DISPLAY
The brightly lit LCD display found on
the TK-7100H/8100H offers user-friendly operation thanks to its 13 segment, a
8-digit multi-capability alphanumeric display.
The memory structure of the
TK-7100H/8100H provides versatility and convenience by allowing up to 64
channels in 8 groups.
Priority and group scan
(single/multi) is available and allows channel(s) to be added and deleted
TOUGH, COMPACT AND POWERFUL
Built to take rough treatment in
stride, the TK-7100H/8100H meets the stringent MIL0STD 810 C/D/E/F standards
for resistance to dust, vibration and shock. The "bathtub" construction of
the chassis assures excellent heat dissipation characteristics, and
installation is simplified thanks to the compact external dimensions-6.30in
(W) x 1.69in (H) x 5.39in (D), Furthermore, the discrete final MOS FET
boasts powerful 45W (UHF) an d50W (VHF) output.
The large-diameter oval (2.28in x
1.38in) speaker mounted in the front panel assures excellent clarity.
The TK-7100H/8100H features
two PTT ID formats - DTMF (max. 16-digit DTMF code) and MSK (FLeetSync�
format ID). PTT ID is a digital ANI (Automated Number Identifier) that can
be sent on each PTT, allowing clear identification of the person using the
The TK-7100H/8100H can be set
for the following DTMF encode and decode modes:
- Code Squelch: DTMF code squelch
provides a 3 to 10 digit ID for DTMF paging.
- Selective Call: DTMF selective
calling is a signaling function comprised of DTMF codes (ID code +
Intermediate code + Status code) that allows direct radio calling even if
the radio is left unattended. When the set ID and intermediate codes
match, the radio's squelch will open and a numeric status code of up to 5
digits can be displayed.
- Number display*: When the DTMF code, such
as the PTT ID number is received, it will display on the LCD.
SELECTABLE TONE (OST)
The user may change the QT/DQT
signaling tones that are set with the FPU using the OST function. The FPU
allows for these assignable tones to have an 8-digit name thus easing
selection in the OST mode.
- Built-in QT/DQT Signaling.
- SmarTrunk II� OMNI capability (requires
- Data Ready (KDS-100, KGP-2A/2B, and 8
Programmable Function Port).
- Encryption Control Capability.
- PC Programming**.
- AVL capability (with KGP-2A/2B).
- Backlit keys for all buttons.
- Ignition sense input.
- 4-Programmable Keys.
- Busy Channel Lockout.
- Embedded Message.
- Security features including Radio stun,
Radio password, Data password, Embedded message, and Kenwood ESN.
- Channel direct.
- Time out Timer (TOT).
- Wide/narrow selection per channel.
*SmarTrunk board is available from
SmarTrunk Systems, Inc
**Compatible with Windows 98/ME/2000/XP, English or Spanish
