Catch the New Wave in
Professional Mobile Communications
Kenwood�s TK-7180/8180 offers
a superb range of advanced features to play a key role in the latest
dispatch and fleet control applications.
- WIDE BAND OPERATION
- CONVENTIONAL & LTR� TRUNKING
ZONES
- EXTRA LARGE CHANNEL CAPACITY
- DUAL PRIORITY SCAN
- DOT MATRIX DISPLAY
- 6 PROGRAMMABLE FUNCTION KEYS
- ENHANCED KENWOOD AUDIO
- VOICE INVERSION SCRAMBLER
- FleetSync� / FleetSync� II
- QT/DQT/DTMF/2-TONE
- VGS-1 VOICE GUIDE & STORAGE UNIT
(OPTION)
- EASY OPTION PORT (26-PIN)
- REMOTE CONTROL HEAD OPTION
- DB-25 ACCESSORY TERMINAL
- MIL-STD 810 C/D/E/F
WIDE BAND
OPERATION
The TK-2180/3180 models feature wide band UHF (70 MHz) and VHF (38
MHz) coverage in one radio model.
512
CHANNELS/128 ZONES
The large 512 channel/128 zone capability* accommodates virtually
any current or future capacity requirement for single or multiple
site radio systems.
Maximum capacity notes*
128 Conventional & LTR Zones cumulative maximum per
radio.
512 Conventional Channels & Group ID�s (GID�s) cumulative maximum per
radio.
250 Channels maximum per any Conventional Zone 250 GID�s maximum per any
LTR Zone.
12-CHARACTER
DOT-MATRIX DISPLAY
The backlighting and high-resolution dot matrix 12-character
alphanumeric display provides easy-to-read channel aliases day or
night.
 Also a 3-digit sub-display for zone/channel/group ID numbers
and icons for function/status indicators make for intuitive
operation.

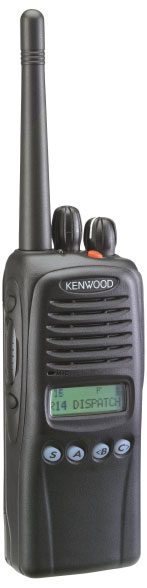

HANDHELD
ELEGANCE
Kenwood employed premium industrial design concepts to make the
TK-2180/3180 portables functionally practical, rugged and an
attractive piece of equipment to carry.
ENHANCED
KENWOOD AUDIO
Kenwood utilizes its longstanding audio heritage to optimize voice
frequency components so that the audio
output cuts through typical ambient noise. This enhancement and the
companded noise reduction provide
clarity and low distortion especially on narrow bandwidth systems.
VOICE
INVERSION
SCRAMBLER
The built-in voice inversion scrambler provides basic communications
protection against casual eavesdropping.
VOX
READY
The TK-2180/3180 offers convenient hands-free operation with a
compatible headset. The TK-2180/3180 internal
VOX (voice-operated transmission) circuitry provides automatic PTT
and a 10-level sensitivity adjustment for different ambient noise
levels.
ROBUST
&
RELIABLE
The TK-2180/3180 is built to survive the hard knocks, drops and all
weather environments of its users. It meets or exceeds the stringent
IP54/55 dust and water intrusion standards and the MIL-STD 810 C,
D,E & F environmental standards including the demanding �driven
rain�� test.
OUTSTANDING FEATURES
CONVENTIONAL & LTR� TRUNKING ZONES
The TK-2180/3180 operates on LTR� trunking systems, conventional
channels or any combination of both, facilitating mixed operation
today or migration tomorrow.
FleetSync� & FleetSync� II
Kenwood�s FleetSync� digital signaling system includes PTT ID
digital ANI for instant radio call identification and Emergency
status for personnel safety. FleetSync also includes status
messaging, selective calling and short/long text dispatch messaging
features. The TK-2180/3180 supports either original FleetSync� or
FleetSync� II*.
*FleetSync and FleetSync II are incompatible.
DUAL PRIORITY & SCAN FEATURES
Dual-Priority Scan automatically checks two important channels for
activity while channel scanning (conventional zones only). Also,
each radio can be programmed to scan through any organization of
channels, systems and talk groups using the many programmable scan
features and parameters. Channel/GID Delete/Add, Nuisance Delete and
Priority Temporary Delete provide relief from non-essential voice
traffic when scanning multiple channels or trunked talk groups.
SIGNALING
The TK-2180/3180 includes industry standard signaling formats for
the most common type radio systems.
- QT/DQT: Sub-audible QT tones and DQT digital codes provide
industry standard talk group muting and segregation for
conventional radio systems.
- DTMF: DTMF permits DTMF PTT ID, telephone interconnect
operation, individual/group selective calling and remote radio
disable/enable (remote stun).
- 2-Tone Selective Calling: Four code pairs each with
individual and group page settings and audio visual alerts can
be assigned per channel.
VGS-1 VOICE GUIDE & STORAGE UNIT
This innovative Kenwood option makes several functions possible.
��Voice Guide�� announces zone, channel, groups and feature
activation/deactivation in a clear synthesized voice. A great tool
for radio communications training or as an aid for the sight or
physically impaired. ��Voice Storage�� records up to 300 seconds of
receive audio for missed calls or your own voice for memo recording.
It also can transmit an ��Auto-Reply�� greeting and record voice
messages for unattended radios while away from the radio or while in
a meeting (the calling unit must send a FleetSync� selective call
for activation).
EASY OPTION PORT
Kenwood�s plug-in option port makes the VGS-1 option and compatible
after-market board installation quick and simple.
OTHER FEATURES
- UNIVERSAL ACCESSORY
CONNECTOR (80/90 SERIES COMPATIBLE)
- PROGRAMMABLE
FUNCTION KEYS
- EMERGENCY KEY
- EMERGENCY &
MAN-DOWN FEATURES
- OPERATOR-SELECTABLE
- TONE (CONVENTIONAL)
- ENCRYPTION & ANI
MODULE CONTROL
- REAL-TIME CLOCK FOR
TIME STAMPING
- EMBEDDED MESSAGES
- RADIO LOCK PASSWORD
- FLASH MEMORY
- CLONING
- WINDOWS PC
PROGRAMMING & TUNING
|
