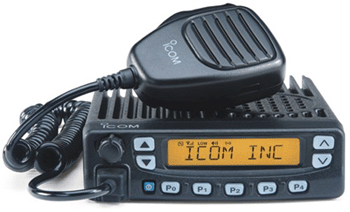

The IC-F520/F620 series
mobiles meet the demanding needs of todays professionals. With 256
channel capacity and built-in flexible tone signalings, cross-regional
public safety coverage is a reality. Business and industrial users will
appreciate the flexible, yet simple design of these MIL SPEC rugged
mobiles from conventional to expanded trunking operation.
Full built-in tone-signalings
All tone-signalings are built-in such as CTCSS, DTCS, 2-tone and
5-tone encode/decode and DTMF encode. A wide variety of selective
calling systems are available to call specific station (s) or control a
repeater. In addition, ANI
(Automatic Number Identification) function is available with
2-tone/5-tone and DTMF decoder*.
* Optional UT-108 is required.
Face the speaker in the
direction you need
Some people install their radios under the dashboard. Others, on the
ceiling. Facing the speaker in the right direction is important for
clear audio. The ICF520/ F620 series lets you simply rotate the chassis
to face the speaker in the direction you need while the control head
remains right side up.
MIL standard rugged
construction
The tough aluminum die-cast chassis and polycarbonate front panel meet
MIL standards for shock, vibration etc. With this heavy-duty
construction, the IC-F520/F620 series provides reliable operation over
the long term, even with use in rugged vehicle environments.
256 memory channels
With 256 channels separated into 16 memory banks and identifiable by a
10-character alphanumeric LCD, you
can quickly access pre-programmed contingency frequency plans ideal
for regional-wide, cross-municipality communications!
9 programmable buttons
2 pairs of up/down buttons and P0-P4 function assignable buttons allow
you to customize functions to meet specific needs. The following items
are programmable in conventional mode or SmarTrunk mode respectively.
| Channel down |
Channel up |
| Scan
start/stop A, B |
Bank |
| Scan
add/delete (Tag) |
Priority A, B |
| Priority
rewrite A |
Monitor |
| Memory channel
1-4 |
Public Address |
| High/Low
output power |
Rx
speaker |
| C. Tone
channel enter |
Lock |
| Wide/narrow
channel |
Talk around |
| DTMF autodial
|
Re-dial |
| Emergency
signal |
Scrambler |
| Emergency
repeat |
Compander |
| User set mode |
Call
|
Null |
| Trunking group
switch |
*
# |
| Turbo SpeeDial
A-D |
Option out 1-3 |
| Option out
momentary 1-3 |
|
| Special
function 1-2 |
|
Trunking capability
Compatible with SmarTrunk ΙΙ with the optional UT-105, or the LTRฎ
trunking system with the optional
UT-111 installed.
Independent AF volume
knob
An independent volume knob offers simple, convenient operation. There is
no need to take your eyes of the road to turn up the volume. Key
backlighting is convenient for operation at night.
Higher power version
Higher power versions are also available for reliable long distance
communications. (VHF : 50W, UHF : 45W)
Optional Voice Scrambler
Optional voice scrambler units UT-109 or UT-110 provide secure private
communications.
Built-in audio compander
The built-in compander compresses the audio before the transmission and
expands it at the receiver side. As a result, the signal to noise ratio
improves to provide clear audio. This function is compatible with the
IC-F30G series.
Stun and Power-on
password function
The stun function disables a lost or stolen radio over the air,
eliminating security threats from undesired listeners. The power-on
password prevents unauthorized people turning on the radio.
Flash CPU advantage
The IC-F520/F620 series uses a flash CPU and high speed PLL. Flash ROM
allows future system upgrade and future compatibility with other
protocols. Fractional-N system provides faster
lockup time, efficient for trunking use.
Other features
- Wide⁄narrow (25/30⁄12.5/15kHz)
channel spacing is selectable per channel
- Wide band coverage of up to 50MHz
(Depending on version)
- PC programming capability from
Microsoftฎ Windowsฎ 95/98/Me
- 10 scanning lists and normal and
priority scan
- Microphone hanger function for
priority channel, monitor channel and scanning
- Optional DTMF mic (HM-100TN)
- Ignition SW function with OPC-617
- Time-out-timer, Lock-out penalty
timer and more
Compatible with IC-F30G/F40G series
handheld
The IC-F520/F620 series is designed to be
a companion to our handheld transceiver, IC-F30G/F40G series. The number
of channels and banks, signaling formats, audio compander, trunking
capability and voice scrambler are completely compatible. Take advantage
of the shared functionality to complete your communications
requirements. |
