VHF AND UHF TRANSCEIVERS
IC-F420/IC-F420S

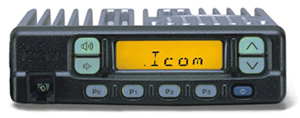

IC-F420

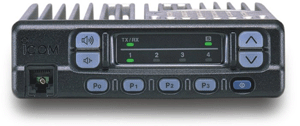

IC-F420S

Tough rugged construction
The highly dependable diecast aluminum chassis and polycarbonate front panel are resistant to impact.

Powerful 45 W of output power
A powerful 45W (35 W for the IC-F420) of output power provides reliable long distance communications when you need it.

SmarTrunk II™ compatible*
These transceivers allow you to take advantage of all the benefits of SmarTrunk II™  trunking systems*. In addition, CTCSS and DTCS encoder/decoder and DTMF, 2-tone decoder functions are optionally available to suite a wide variety of signalling requirements.
*Optional UT-105 SmarTrunk II™ Logic Board is required: SmarTrunk II™  is a trademark of SmarTrunk II™ System Inc.

Selectable channel spacing
Versions are available that allow wide/narrow switching independently for each channel.

Programmable key assign function
4 switches provide simple operation yet their functions can be changed during programming, providing flexibility to suit your specifics needs.

Alphanumeric display


ADDITIONAL FEATURES

  • Backlit keys help night operation
  • 32 channels for 5-tone encoder (optional)
  • Emergency call with single and repeat function
  • 8 identities + group code for 5-tone decode (optional)
  • Selectable digits for 5-tone decode indication
  • Automatic ID transmission linked to PTT
  • 51 frequencies for CTCSS (plus 1 programmable)
  • Polarity selectable for DTCS
  • 7 autodialing memories for DTMF
  • Up to 5 character channel display
  • Bank separation capability
  • 5 scan channel groups
  • 2 priority channels
  • Automatic scan start and/or receive mute when mic. is on hook
  • Automatic priority channel selection and/or mute release when mic. is off hook
  • Normal and priority scan
  • Scan start at power on
  • CTCSS reverse burst
  • Remote monitoring capability (optional UT-96 required)
  • Optional PIN code input to prevent operation by unauthorized persons
  • Programmable minimum level for audio output
  • Talk around function (temporary simplex operation on a duplex channel)
  • Time-out transmission timer
  • Penalty timer
  • Busy channel lockout options
  • 2 selectable 'stun' functions (optional UT-96 required)
  • Compact body provides easy installation
  • Advanced programming for IBM® compatible PC's
