Supports demanding communication with simple operation

IC-F3GT (VHF transceiver with keypad)
IC-F3GS (VHF transceiver without keypad)
IC-F4GT (UHF transceiver with keypad)
IC-F4GS (UHF transceiver without keypad)

Durability, dependability, operation simplicity, style, ruggedness, economical use, and more are required for commercial transceivers. But only a few such transceivers are available, particularly for portables. Now from ICOM—the IC-F3G series of portable transceivers aim to become the most highly reputable of all commercials. Superior performance and features, everything you require is included. Icom's technology gives you satisfaction you never knew before.

Supports multiple signalling and flexible selective calling

CTCSS/DTCS encoder/decoder, and DTMF, 2/5-tone encoder with user programmable CTCSS, DTCS capabilities, are built-in. The optional UT-96⁺ (for 2/5tone), or UT-108⁺ (for DTMF) allows decode with ANI functions. In addition, special tone code, for group, and individual calls, and more features are available to support flexible, perfect selective calling operations.

• 7-digit code can be used as the 5-tone
• Direct individual station/group call with/without own ID transmission, or though repeater
• Selectable 5-tone format includes user tone format programming capability (Encode and Decode frequencies, Tone period, No-tone timer, and Tone length)
• Text or ID number indication
• Desired 5-tone code entering for both individual and group call
• Transceiver remote control—stun, kill, and scan start/stop functions
• Selectable comparing digit code for decoding
• Selective calling capability from a public telephone (UT-108 DTMF DECODER is required; base/repeater station must be connected to the public telephone network).

Man down function*
Automatically sending an emergency signal when the transceiver is left in the horizontal position for a preset time.
*Optional UT-124+ is required.

Trunking capabilities*

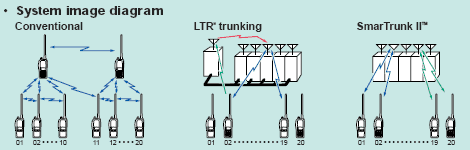

Compatible with the SmarTrunk II™, or the LTR® trunking systems.
*Optional UT-105+ for SmarTrunk IITM, UT-111+ for LTR® trunking is required.

Operation security
Optional voice scrambler units, UT-109⁺ and UT-110⁺, for secure communications are available.

Programmable key assign
Up to 8 programmable keys are available to assign specific functions. In particulqr, the red key can be used for important functions, such as an emergency call, etc.

Latest PC programming package
For Microsoft® Windows® 95/98.

MIL spec. durability
54(W) × 132(H) × 35(D) mm* compact body with durable, dependable construction, meets the MIL standard.
*2 ¹⁄₈(W) × 5 ³⁄₁₆(H) × 1 ⁷⁄₁₆(D) in

Simple operation
Enlarged 7-character alphanumeric automatic backlit LCD and function keys make for easier operation.

Long life batteries
The standard Ni-Cd battery pack allows 8 hours* operation. Optional battery pack for extended operation and a battery case for use while charging the battery, or for emergency operation etc., are available.
*approx.; Tx:Rx:Standby ratio = 5:5:90

Other features

• 100 or 40 memory channels
• Powerful 5 W output for IC-F3GT/GS, 4 W output for IC-F4GT/GS
• Selectable channel attribute from emergency, priority A/B, and normal
• Normal and priority scans
• Auto LCD contrast
• 2 step power saver
• 5 autodialing memories for DTMF
• Busy, repeater lockout functions
• Power ON password, and more...
