Basic LTR™/conventional mode operation
Both LTR™ trunking and conventional channels are
programmable on a radio. Group, selective (DTMF), and phone call are
available in LTR™ mode.
IP55 dust-protection and water jet resistance

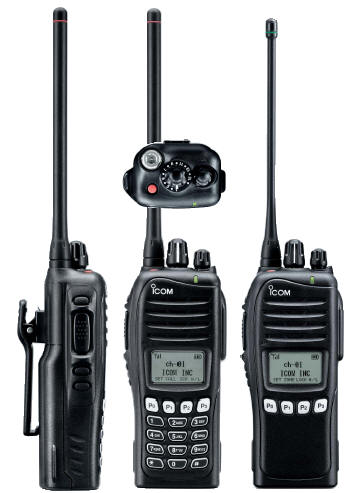

The IC-F3161/D series meets IP55 requirements for
dust-protection and water jet resistance. Its durable construction is backed
up by the aluminum die-cast chassis and polycarbonate casing, allowing
reliable operation under harsh weather and environmental conditions.
Lithium-Ion battery pack
The supplied 2000mAh Li-Ion battery pack, BP-232N, provides
14 hours* of operating time. The optional battery case BP-240 provides a
convenient back up and great reassurance in an emergency.
* Typical operation
Tx:Rx:Stand-by=5:5:90, power save
on
Most
popular signalings
built-in
The 2-Tone, 5-Tone, CTCSS, DTCS and MDC signaling
capabilities are built-in for group communication or selective calling. The
radio can decode ten 2-Tone codes or eight 5-Tone codes on a channel. When a
matched tone is received, the following actions are programmable for each
code.
-
Beep sound
-
Bell icon
-
Answer back call
-
Auto TX
-
Radio stun/kill/revive
-
Scan
MDC 1200
Compatible
The following selective calling and ANI features are
available with the built-in MDC signaling.
Voting mode scanning
The voting mode scanning detects the signal strength level
of repeater stations and automatically selects the strongest station, useful
for roaming between 2 or more repeater sites. Once you program the voting
mode to a memory zone, you can easily start voting mode operation by
changing the zone setting.
Full dot-matrix
LCD
Using a large full dot-matrix LCD (32
× 18 mm), the IC-F3161/D series shows upper and lower case characters
clearly. The display setting is selectable from 1 line, 12 characters or 2
lines 24 characters via programming. The bottom row shows assigned functions
to the [P0] to [P3] buttons.
Enhanced
audio
The IC-F3161/D series employs a BTL amplifier that increases
the audio output and the built-in audio compander provides clear, low noise
communications.
Lone
worker function
When the radio is not operated for a preset period, a beep
sounds and a button push is required. If no button is pushed within that
preset time, an emergency signal automatically transmits and alerts your
co-worker or dispatcher to any potential trouble.
Built-in inversion-type voice scrambler
The built-in inversion type voice scrambler* provides secure
conversation as standard. When a more secure system is required, the 32 code
non-rolling-type voice scrambler UT-109R and 1020 code rolling type UT-110R
are available as an option. * Inversion type voice scrambler is not
compatible with UT-109/UT-110 voice scrambler.
Other features
-
512 memory channel
with 128 zones.
-
8 DTMF autodial memories.
-
2 step reduced power setting.
-
Power on password.
-
Busy, repeater lockout functions.
-
Escalating alarm.
-
Mode dependent scan.
-
Surveillance function temporarily turns off the LED
backlight and beep sound.
-
Powerful 5W output both in VHF and UHF.
-
Flash CPU for future upgrade and more...
|
