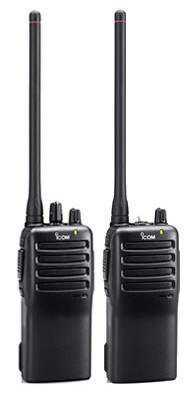

WISCO International (ICOM- IC-F14 / IC-F14/S / IC-F24 / IC-F24/S)

Built to last, built to work!

IC-F14 / IC-F14/S The IC-F14/S series shows Icom’s new direction in LMR radio design. Simple operation for everyone but a powerful and reliable tool for your daily business. Its very durable construction is resistant to shock and vibration. The dual rail guide design securely locks the battery pack to the radio. Wide range frequency coverage, Li-Ion battery pack, loud and clear audio, built-in signalings and option unit connector combined with Icom grade electrical performance, the IC-F14/S series will easily exceed your expectations.

Tough and reliable construction
The IC-F14/S series is built around an aluminum die-cast chassis and covered with tough polycarbonate casing. This radio is built to last. Its dual slide rail securely locks the battery to the radio. The battery terminal is covered with a non-corrosive rubber packing. The belt clip is clamped between the radio and the battery, making it nearly impossible to knock loose.

NEW! MDC 1200 compatible

Transmit MDC1200 PTT ID and Emergency Calls with the F14 series. The MDC1200 encoding functions are compatible with fleets using existing MDC systems.

NEW! Low Battery Beep

The Low Battery Beep adds an audible alert in addition to the LED blinking when the battery runs low. This feature is ideal for workers who wear their F14 on a belt.

Simple operation
Having only 3 buttons, volume and channel knobs, the IC-F14/S series does not require special training to use. Positive button action for sure operation even when wearing gloves, allows you to get down to the business of communicating without fuss.

Wide frequency coverage
The IC-F14/S series covers a wide frequency range with one version (136–174,400–470, 450–512 (520) MHz). Wide and narrow channel spacing (25, 12.5kHz) is programmable per channel.

Lithium-Ion battery standard
The IC-F14/S series comes with the BP-231 Li-Ion battery pack as standard. Li-Ion batteries have virtually no memory issues and allows you flexible charging. In addition, the optional BP-232 provides a high capacity 2000mAh for longer operating time.

Optional board
The IC-F14/S series has an expansion socket for adding an optional board. Voices scrambler, man down and DTMF decoder features are available, depending on the installed board.

Most popular signalings built-in
Use the built-in 2-Tone, 5-Tone, CTCSS and DTCS capabilities as standard to setup your own talk groups and quiet stand-by when others are talking.

Multiple 2-Tone, Multiple 5-Tone
Up to 10 2-Tone/8 5-Tone codes can be decoded on a channel. When a matched tone is received, the following items are programmable for each code.
• Beep sound• Answer back • Stun• LED blink• Auto transmit • Scan

Other features

LED low battery alert.
TOT function and lock out penalty timer.
2 step power saver.
Normal and priority scan.
500mW loud and clear audio.
Optional VOX headset for hands free operation.
PC programming capability.
Embedded ESN (Electronic serial number).
