BASE SPIRIT SERIES

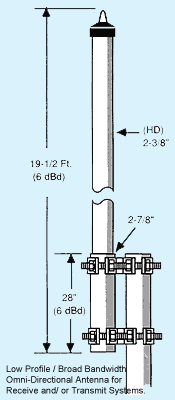

Heavy Duty VHF 2 METER ANTENNAHX6-14448 (6dB)

Model HX6-14448 (6 dBd)

    • Gain: 6 dBd
    • Bandwidth: 4 MHz.
    • V.S.W.R.: 1.5:1
    • Polarization: Vertical
    • Power Rating: 600 Watts Maximum
    • Termination: Type N Female
    • Vertical Aperture (3 dB from max.): 16 Degrees (6 dBd)
    • Weight: 24 lb.
    • Wind Load (Lateral thrust @ 100 mph): 92 lb.
    • Wind Area (flat plate equivalent):  1.65 sq. ft.
    • Maximum Wind Speed: 140 mph
    • Material Feed Lines: Copper
    • Radiators: Brass
    • Color Radome: White Fiberglass
    • Mounting: Galvanized steel mounting clamps permit mounting the antenna to a support pipe up to 3.25" O.D.
    • Lightning Protection: Direct Ground



Specifications for HX6-14448, 6dB gain

Radiation Patterns (Relative Field)

HX6 Horizontal HX6 Vertical Typical VSWR
Relative VSWR
