1.2-1.3 GHz. ANTENNAHS12-12430

Model Number:
  • HS6-12430 (6 dBd)
  • HS9-12430 (9 dBd)
  • HS10-12440 (10 dBd)

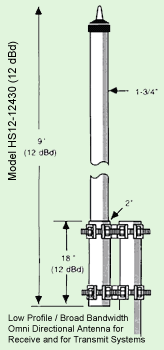

  • HS12-12430 (12 dBd)
    • Gain: 6 dBd, 9 dBd, 12 dBd
    • Bandwidth: 80 MHz.
    • V.S.W.R.: 1.5:1
    • Polarization: Vertical
    • Power Rating: 300 Watts Maximum
    • Termination: Type N Female
    • Vertical Aperture (3 dB from max.):
      • 18 degrees (6 dBd)
      • 4 degrees (12 dBd)
    • Weight: 10 lb.
    • Wind Load (Lateral thrust @ 100 mph): 52 lb.
    • Wind Area (flat plate equivalent):  1.2 sq. ft.
    • Maximum Wind Speed: 160 mph
    • Material Feed Lines: Copper
    • Radiators: Copper
    • Color Radome: White Fiberglass
    • Mounting: Galvanized steel mounting clamps permit mounting the antenna to a support pipe up to 3.25" O.D.
    • Lightning Protection: Direct Ground

Below Specifications for HS12-12430, 123dB gain
Radiation Patterns (Relative Field)
