SPIRIT SERIES

2 METER VHF ANTENNA

Model Number

• HSU-14448 (Unity)

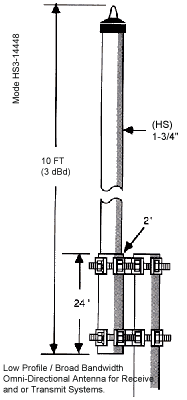

• HS3-14448 (3 dBd)
  • Gain: Unity, 3 dBd
  • Bandwidth: 4 MHz.
  • V.S.W.R.: 1.5:1
  • Polarization: Vertical
  • Power Rating: 500 Watts Maximum
  • Termination: Type N Female
  • Vertical Aperture (3 dB from max.)
    • 75 Degrees (Unity)
    • 36 Degrees (3 dBd)
  • Weight: 8 lb.
  • Wind Load (Lateral thrust @ 100 mph): 41 lb.
  • Wind Area (flat plate equivalent):  0.51 sq. ft.
  • Maximum Wind Speed: 160 mph
  • Material Feed Lines: Copper
  • Radiators: Brass
  • Color Radome: White Fiberglass
  • Mounting:Galvanized steel mounting clamps permit mounting the antenna to a support pipe up to 3.25" O.D.
  • Lightning Protection: Direct Ground

Specifications for HS3-14448, 3dB gain

Radiation Patterns (Relative Field)
