CELLULAR / TRUNKING /
PAGING
Omnidirectional Fiberglass Antenna
Model Number
- HX12-80669
(806-869 MHz.) TRUNKING
- HX12-82496
(824-896 MHz.) CELLULAR
- HX12-89060
(890-960 MHz.) GSM
- HX12-90142
(901-942 MHz.) PAGING
- HX12-92040
(920-940 MHz.) PAGING
- Frequency Range: 806-960
MHz
- Gain: 12 dBd (14.15
dBi)
- Bandwidth: Varies with
model (see above)
- V.S.W.R.: 1.5:1
- Polarization: Vertical
- Power Rating: 600
Watts Maximum
- Termination: Type N Female
or 7/16
- Vertical Aperture
(3 dB from max): 4 Degrees
- Weight: 26 lb. (11.8
kg.)
- Wind Load
(Lateral thrust @ 100 mph): 95 lb. (422 N)
- Wind Area
(flat plate equivalent): 1.9 sq. ft. (0.176 sq.m.)
- Maximum Wind Speed: 160
mph (257 kph.)
- Material:
- Feed Lines: Copper
- Radiators: Copper
- Color: Radome White

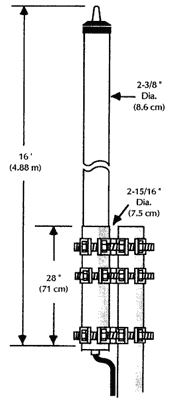

- Mounting
(top or side mount): Galvanized steel mounting clamps
(3 sets) permit mounting the antenna to a support pipe up
to 3.0" O.D.
- Lightning Protection: Direct
Ground
- Accessories: Reflector Tube
(adds 3 dB directional) and Side Mount Kit optional.
|
