EXTREME ENVIRONMENT UHF 10 dBd GAIN

Omni Directional Fiberglass  Antenna

Model NumberModel HX10 Series

  • HX10-40630 (406-430 MHz.)
  • HX10-43050 (430-450 MHz.)
  • HX10-45070 (450-470 MHz.)
  • HX10-47090 (470-490 MHz.)
  • HX10-49051 (490-512 MHz.)
    • Frequency Range: 406-512 MHz.
    • Gain:  10 dBd (12.15 dBi)
    • Bandwidth: 20 MHz.
    • V.S.W.R.:  1.5:1
    • Polarization:  Vertical
    • Power  Rating: 700 Watts Maximum Continuous
    • Termination: Type N Female or 7/16
    • Vertical Aperture
      (3 dB from max): 6 Degrees
    • Weight:  27 lb. (12.2 kg.)
    • Wind Load
      (Lateral thrust @ 100 mph): 100 lb. (444 N)
    • Wind Area
      (flat plate equivalent): 2.1 sq. ft. (0.19 sq.m.)
    • Maximum Wind Speed:  160 mph (257 kph.)
    • Material:
      • Feed Lines:  Copper
      • Radiators: Copper
    • Color: Radome White

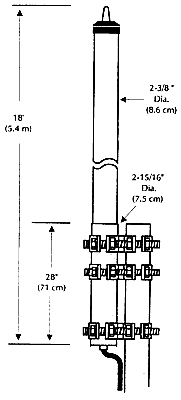

    • Mounting
      (top or side mount):  Galvanized steel mounting clamps (3 sets) permit mounting the antenna to a support pipe up  to 3.0" O.D.
    • Lightning  Protection: Direct Ground
    • Accessories: Reflector Tube (adds 3 dBb directional) and Side Mount Kit optional.
Radiation Patterns (Relative Field Strength)
