CELLULAR / TRUNKING /
PAGING
Broad Bandwidth Omnidirectional Fiberglass Antenna
Model Number
- HD10-80669
(806-869 MHz.) TRUNKING
- HD10-82496
(824-896 MHz.) CELLULAR
- HD10-89060
(890-960 MHz.) GSM
- HD10-90142
(901-942 MHz.) PAGING
- HD10-92040
(920-940 MHz.) PAGING
- Frequency Range: 806-960
MHz
- Gain: 10 dBd (12.15
dBi)
- Bandwidth: Varies with
model (see above)
- V.S.W.R.: 1.5:1
- Polarization: Vertical
- Power Rating: 600
Watts Maximum Continuous
- Termination: Type N Female
or 7/16
- Vertical Aperture
(3 dB from max): 6 Degrees
- Weight: 21 lb. (9.5
kg.)
- Wind Load
(Lateral thrust @ 100 mph): 55 lb. (244.4N)
- Wind Area
(flat plate equivalent): 1.41 sq. ft. (0.13 sq.m.)
- Maximum Wind Speed: 150
mph (241 kph.)
- Material:
- Feed Lines: Copper
- Radiators: Copper
- Color: Radome White

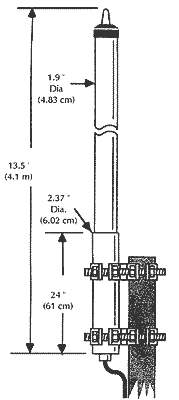

- Mounting
(top or side mount): Galvanized steel mounting clamps
permit mounting the antenna to a support pipe up to 3.25"
O.D.
- Lightning Protection: Direct
Ground
- Accessories: Reflector Tube
(adds 3 dB directional) and Side Mount Kit optional.
|
