CELLULAR/TRUNKING/PAGING

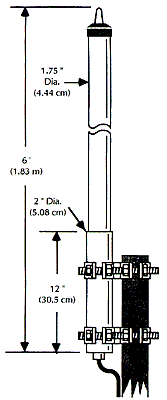

Omnidirectional Fiberglass Antenna
 Model
Number
- HS6-80669
(806-869 MHz.) TRUNKING
- HS6-82496
(824-896 MHz.) CELLULAR
- HS6-89060
(890-960 MHz.) GSM
- HS6-90142
(901-942 MHz.) PAGING
- HS6-92040
(920-940 MHz.) PAGING
- Frequency Range: 806-960
MHz
- Gain: 6 dBd (8.15 dBi)
- Bandwidth: Varies with
model (see above)
- V.S.W.R.: 1.5:1
- Polarization: Vertical
- Power Rating: 400
Watts Maximum
- Termination: Type N Female
or 7/16
- Vertical Aperture
(3 dB from max): 16 Degrees
- Weight: 7 lbs. (3.2
kg.)
- Wind Load
(Lateral thrust @ 100 mph): 22 lbs. (97.7 N)
- Wind Area
(flat plate equivalent): .58 sq. ft. (0.053 sq.m.)
- Maximum Wind Speed: 160
mph (257 kph.)
- Material:
- Feed Lines: Copper
- Radiators: Copper
- Color: Radome White
- Mounting (top or side
mount): Galvanized steel mounting clamps permit
mounting the antenna to a support pipe up to 3.25" O.D.
- Lightning Protection: Direct
Ground
- Accessories: Reflector Tube
(adds 3 dB directional) and Side Mount Kit optional.
|
