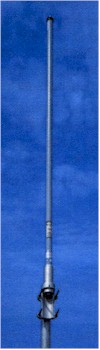

DB910C-M PCS OMNI ANTENNAS 3, 6 OR 10 dBd, 1850-1990 MHz

Decibel Products and Antenna Specialists, divisions of ATG, have created a complete line of PCS antennas for 1850-1990 MHz. With aesthetically pleasing designs and very low profiles, the field-tested antennas are now available for domestic and international applications. Three omnidirectional transmit and/or receive models are offered with 3,6 or 10 dBd gain.

Sturdy Construction - All three have radomes of tough fiberglass, two ASP models are white in color, the DB model has blue green Mirage™ fiberglass. Radiators are made of passivated aluminum or brass, hardware of galvanized or stainless steel.
Power Rating - 400 watts maximum input.
Trouble Free - Each antenna is tested for power rating compliance and the absence of intermodulation generators.
Lightning Resistant - Direct ground.
Mounting - The ASP models are shipped with two ASPA320 mounting clamps. The DB model has an integral dual purpose mount that can be top or side mounted to a pipe with V-bolts, included.

Electrical Data
	ASPP2933	ASPP2936	DB910C-M
Frequency Ranges - MHz	1850-1990
Gain - dBd VSWR	3/5.1 <1.5:1	6/8.1 <1.5:1	10/12.1 <1.5:1
Bandwidth (3dB from maximum Polarization	32� Vertical	12� Vertical	5� Vertical
Maximum power input - watts Input impedance - ohms Lightning protection	400 50 Direct Ground
Termination -Standard Jumper cable	N-Female Order Separately

Mechanical Data
	ASPP2933	ASPP2936	DB910C-M
Overall length -in. (mm) Radome OD -in. (mm)	24 (610) 1.0 (25.4)	36 (915) 1.0 (25.4)	77 (1956) 1.5 (38)
Wind area - ft� (m�) Wind load at 100 mph (160 kph) -lbf (N) kp Maximum wind speed -mph (kph)	.11 (.01) 4.4 (19.6) 2 165 (266)	.17 ((0.15) 6.8 (30.2)3 165 (266)	.5 (.05) 20 (89)8.9 125 (200)
Weight -lbs. (kg) Shipping weight -lbs. (kg)	4 (1.8) 11 (4.9)	6 (2.7) 13 (5.9)	5.2 (2.4) 9 (4.1)
Clamps	ASPA320	ASPA320	Integral Dual Purpose

Ordering Information
N-Female	7/16 DIN Connector	Gain - dBd/dBi
ASPP2933 ASPP2936 DB910C-M	ASPP2933G(on 300 mm pigtail) ASPP2936G(on 300 mm pigtail) DB910CE-M	3/5.1 6/8.1 10/12.1
