WISCO International (Decibel Products / Dipoles DB264)

DB264 RUGGEDIZED BROAD BAND ANTENNA 6 or 9 dB GAIN, 150-174 and 220-222 MHz

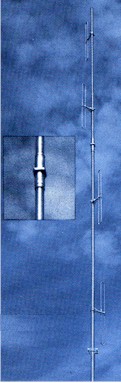

A high gain, lightweight antenna for 150-174 MHz, the DB264 features a 10 MHz bandwidth and an enclosed feed system. Can be mounted on the top or side of the tower.

Broad Response - 10 MHz bandwidth provides optimum performance in single or multi-frequency systems, in both transmit and receive.
Moisture Resistant - VAPOR-BLOC® cable harness is enclosed within the metal mast and the radiating elements, both vented to prevent moisture accumulation.
Circular Pattern - DB264 has four elements positioned evenly, every 90 degrees around the mast, for an omni pattern.
Offset Pattern - DB264E comes with four elements aligned collinearly on the same side of the mast for maximum directional gain.
Two-Piece Mast - For ease of shipment and handling, the mast is made in two sections. A unique center splice assures proper alignment. Cable harness aligns automatically when sections are joined.
Field Changeable - Patterns can be changed with ordinary hand tools.
Lightning Resistant - The radiators operate at DC ground, and the aluminum mast with its pointed cap provides a low resistant discharge path to the tower or ground system.
Ordering Information - Use model number for correct frequency and specify termination if non-standard. DB365-OS Mounting Clamps are included. Order DB5001 Side Mount Kit if needed. For Dipole Stabilizer Kit, order 12088 (four required). Other size clamps can be special ordered. Example: DB264-A for 150-160 MHz range. Order jumper cable separately, if desired.

Electrical Data
Frequency Ranges - MHz	A = 150-160, B = 155-165, C= 164-174, JJ = 220-222
Bandwidth -MHz VSWR	10 1.5 to 1 or less
Nominal impedance - ohms Gain (over halfwave dipole) Omni pattern - dB Offset pattern - dB	50 6 9
Maximum power input - watts Vertical beamwidth (1/2 power points)	500 16°
Lightning protection	Direct ground
Standard Termination: Captive Type N-Male attached to end of flexible lead. Other fittings can be supplied on special order. If UHF connector is required, an adapter is provided.

Mechanical Data
Mast - upper (aluminum) - in. (mm) - Mast - lower (aluminum) - in. (mm) - Radiating elements (aluminum) - in. (mm)	1.75 (44.45) OD with .062 to .187 (1.57 to 4.75) wall (50.8) OD with .125 to .25 (3.18 to 6.35 wall - .5 (12.7) OD with .058 (1.47) wall
Maximum exposed area (flat plate equivalent) - ft². (m².) Lateral thrust at 100 mph (161 km/hr) - lbf (N)	3.16 (.29) 126 (562.2)
Wind rating:* Survival w/o ice - mph (km/hr) Survival with .5" (12.7 mm) radial ice - mph (km/hr)	100 (161) 70 (112.65)
Overall length (150-160 MHz) - in. (mm) Shipping length - in. (mm)	258 (6,553.2) 148 (3,758.2)
Net weight (w/clamps) - lbs (kg) Shipping weight (w/clamps) - lbs. (kg)	36 (16.33) 59 (26.76)
Mounting clamps - (Galvanized steel)	DB365-OS
