WISCO-(CELWAVE- S-FLC12-50J)

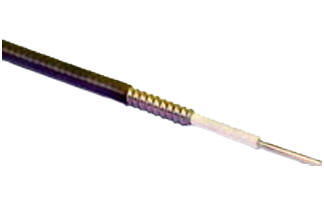

CELLFLEX® 1/4" superflexible cable Application: OEM jumpers, BTS inter-cabinet connections, GPS lines

Features/Benefits

Low Attenuation
The low attenuation of CELLFLEX® coaxial cable results in highly efficient signal transfer in your RF system.
Complete Shielding
The solid outer conductor of CELLFLEX® coaxial cable creates a continuous RFI/EMI shield that minimizes system interference.
Low VSWR
Special low VSWR versions of CELLFLEX® coaxial cables contribute to low system noise.
Outstanding Intermodulation Performance
CELLFLEX® coaxial cable’s solid inner and outer conductors virtually eliminate intermods. Intermodulation performance is also confirmed with state-of-the-art equipment at the RFS factory.
High Power Rating
Due to their low attenuation, outstanding heat transfer properties and temperature stabilized dielectric materials, CELLFLEX® cable provides safe long term operating life at high transmit power levels.
Wide Range of Application
Typical areas of application are: feedlines for broadcast and terrestrial microwave antennas, wireless cellular, PCS and ESMR base stations, cabling of antenna arrays, and radio equipment interconnects.

Structure
Inner Conductor: Copper-Clad Aluminum Wire	[ mm (in) ]	1.9 (0.075)
Dielectric:	[ mm (in) ]	4.3 (0.170)
Outer Conductor: Annularly Corrugated Aluminum	[ mm (in) ]	6.5 (0.26)
Jacket Polyethylene, PE	[ mm (in) ]	7.8 (0.31)
Mechanical Properties Weight, approximately	[ kg/m (lb/ft) ]	0.07 (0.05)
Minimum bending radius, single bending	[ mm (in) ]
Minimum bending radius, repeated bending	[ Nm (lb-ft) ]	25 (1.0)
Bending moment	[ Nm (lb) ]	0.7 (0.5)
Max. tensile force	[ N (lb) ]	600 (135)
Recommended / maximum clamp spacing	[ m (ft) ]	0.20 / 0.20 (0.67 / 0.67)
Electrical Properties
Characteristic impedance	[ Ω ]	50 +/- 1
Relative propagation velocity	[ % ]	82
Capacitance	[ pF/m (pF/ft) ]	82.0 (25.0)
Inductance	[ µH/m (µH/ft) ]	0.207 (0.063)
Max. operating frequency	[ GHz ]	20.399999999999999
Jacket spark test RMS	[ V ]	5000
Peak power rating	[ kW ]	5.5
RF Peak voltage rating	[ V ]	740
DC-resistance inner conductor	[ Ω/km (Ω/1000ft) ]	10.40 (3.17)
DC-resistance outer conductor	[ Ω/km (Ω/1000ft) ]	6.60 (2.01)
Recommended Temperature Range
Storage temperature	[ °C (°F) ]	-70 to +85 (-94 to +185)
Installation temperature	[ °C (°F) ]	-40 to +60 (-40 to +140)
Operation temperature	[ °C (°F) ]	-50 to +85 (-58 to +185)

Frequency	Attenuation		Power	Frequency	Attenuation		Power
[ MHz ]	[ dB/100m ]	[ dB/100ft ]	[ kW ]	[ MHz ]	[ dB/100m ]	[ dB/100ft ]	[ kW ]
0.5	0.401	0.122	5.50	960	19.1	5.81	0.347
1.0	0.568	0.173	5.50	1000	19.5	5.94	0.339
1.5	0.696	0.212	5.50	1250	22.0	6.71	0.300
2.0	0.804	0.245	5.50	1500	24.3	7.41	0.272
10	1.81	0.550	3.66	1700	26.1	7.94	0.254
20	2.56	0.781	2.58	1800	26.9	8.20	0.246
30	3.15	0.960	2.10	2000	28.5	8.69	0.232
50	4.08	1.24	1.62	2100	29.3	8.93	0.226
88	5.45	1.66	1.21	2200	30.1	9.2	0.220
100	5.82	1.77	1.14	2400	31.6	9.6	0.209
108	6.06	1.85	1.09	3000	35.8	10.9	0.185
150	7.17	2.19	0.922	3500	39.1	11.9	0.169
174	7.75	2.36	0.854	4000	42.2	12.9	0.157
200	8.33	2.54	0.794	5000	48.0	14.6	0.138
300	10.3	3.13	0.643	6000	53.4	16.3	0.124
400	12.0	3.65	0.553	7000	58.6	17.8	0.113
450	12.7	3.88	0.519	8000	63.4	19.3	0.104
500	13.5	4.10	0.491	9000	68.1	20.8	0.097
512	13.6	4.15	0.485	10000	72.6	22.1	0.091
600	14.8	4.52	0.446	12000	81	24.8	0.081
700	16.1	4.91	0.411	14000	89	27.2	0.074
800	17.3	5.27	0.382	16000	97	29.6	0.068
824	17.6	5.35	0.376	18000	105	31.9	0.063
894	18.4	5.59	0.360	20000	112	34.2	0.059
900	18.4	5.61	0.359	20400	113	34.6	0.058
925	18.7	5.70	0.354

Other Characteristics
Fire Performance:	Halogene Free
VSWR Performance:	Standard	[ dB (VSWR) ]	Contact RFS for your VSWR performance specification for the required band.
Other Options:	Phase stabilized and phase matched cables and assemblies are available upon request.
