Phantom Antennas Patented Whipless Performance

Phantom� Antennas Patented Whipless Performance

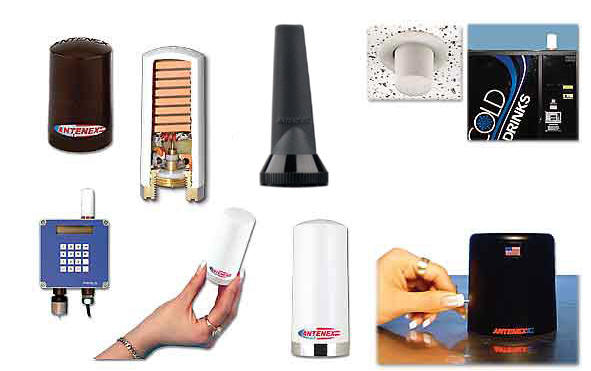

Our unique patented Phantom is a tough antenna for outdoor or indoor applications. The Phantom revolutionary design features field diversity with both vertical and horizontal polarization components. This gives the antenna diversity, frequency agility, low visibility, wide bandwidth and a low angle radiation pattern that is superior to traditional gain antennas in most applications.

The industry standard NMO mounting socket mates with all Antenex Magnetic, Trunk lid, and hole mounts. We also provide a threaded stud mount model for vandal resistant mounting on brackets, panels, ceilings or any other kind of housing.

The Phantom patented technology is beneficial when high performance is desired and extreme ruggedness and low profile is required.

Features & Benefits

  • Whipless Design: The patented whipless design of our Phantom antenna allows car washes without removing the antenna. Whipless means they don't look like antennas, attract less attention, less vandalism, and have lower wind resistance. The Phantom is also less susceptible to damage by trees, garages or other obstructions.
  • Field Diversity: Field diversity means that the antenna is simultaneously sensitive to both the electric and magnetic fields of the signal, like having two antennas. Field diversity makes the antenna resistant to the picket-fence fading and multipath nulls that are found in urban operation and undulating mobile environments.
  • Permanent Mounting: Permanent mount versions of the UHF and higher frequency models are available for high risk applications such as metering where antennas must resist vandalism and achieve economical mounting.
  • Versatile: Excellent for voice or telemetry applications


  142-174 MHz 210-230 MHz 410-490 MHz 800-900 MHz 2400 MHz
Gain: Unity Unity 3 dB-MEG. 3 dB-MEG.
142-160 MHz
150-168 MHz
156-172 MHz
210-230 MHz 410-425 MHz
430-450 MHz
450-470 MHz
470-490 MHz
806-866 MHz
821-896 MHz
890-960 MHz
902-928 MHz
2400-2500 MHz
VSWR: <1.5:1 850 kHz
<2.0:1 1.0 MHz
<1.5:1 2.2 MHz
<2.0:1 4.0 MHz
<1.5:1 10 MHz
<2.0:1 20 MHz
<1.8:170 MHz <1.5:1 100 MHz
60 watts 100 watts 150 watts
100 watts NGP
150 watts 100 watts
Bandwidth: 1.5 MHz 4 MHz >20 MHz >70 MHz >100 MHz
Impedance: 50 ohms 50 ohms 50 ohms 50 ohms 50 ohms
Height: 3 1/2� 2 3/4� 3�� 2�� 3��
