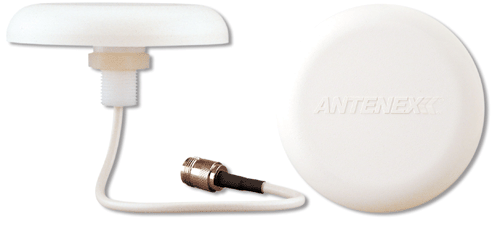

Multiversity Indoor Antenna™

Antenex offers the MIA8063ST Multiversity Indoor Antenna to maximize the flexibility and effectiveness of indoor communications. This antenna solution provides effective and clear communication for any in-building application. Add any Antenex Yagi directional antenna, such as the Y8066, and any bi-directional amplifier for the ideal RF solution.

The aesthetically pleasing MIA antenna is also versatile. The antenna requires no ground plane. It may be mounted anywhere from a ceiling grid tile to an office wall depending on your application.

Many 800 MHz users experience coverage problems when using their subscriber units indoors, due to lack or loss of signal. Improve your phone system coverage in buildings, plants or warehouses with the Multiversity Dual Polarized Indoor Antenna (MIA8063ST) created exclusively for these applications by Antenex.

Typical Ceiling Installation

Typical Wall Mount Installation

Frequency Range: 806-869 MHz
2.4-2.5 GHz
Gain: 3 dB
Impedance: 50 Ohms
VSWR: <1.5:1
Polarization: Dual Polarized Field Diversity.
Maximum Power Input: 100 watts
Mounting: Single Hole Mount.
Self Adhesive Pad:
Termination: Pigtail with Type N Female
Material: Back Panel
Radiating Elements
PC Board
Weight: .5 lb.
Application: Ceiling or Wall Mount Microfill for Cellular,
Model Frequency Center Freq Gain
MIA8063 806 - 869 MHz 837.5 MHz 3 dB-MEG*
MIA8063ST 806 - 869 MHz 837.5 MHz 3 dB-MEG*
MIA24003 2400 - 2500 MHz 2450 MHz 3 dB-MEG*
MIA24003ST 2400 - 2500 MHz 2450 MHz 3 dB-MEG*
